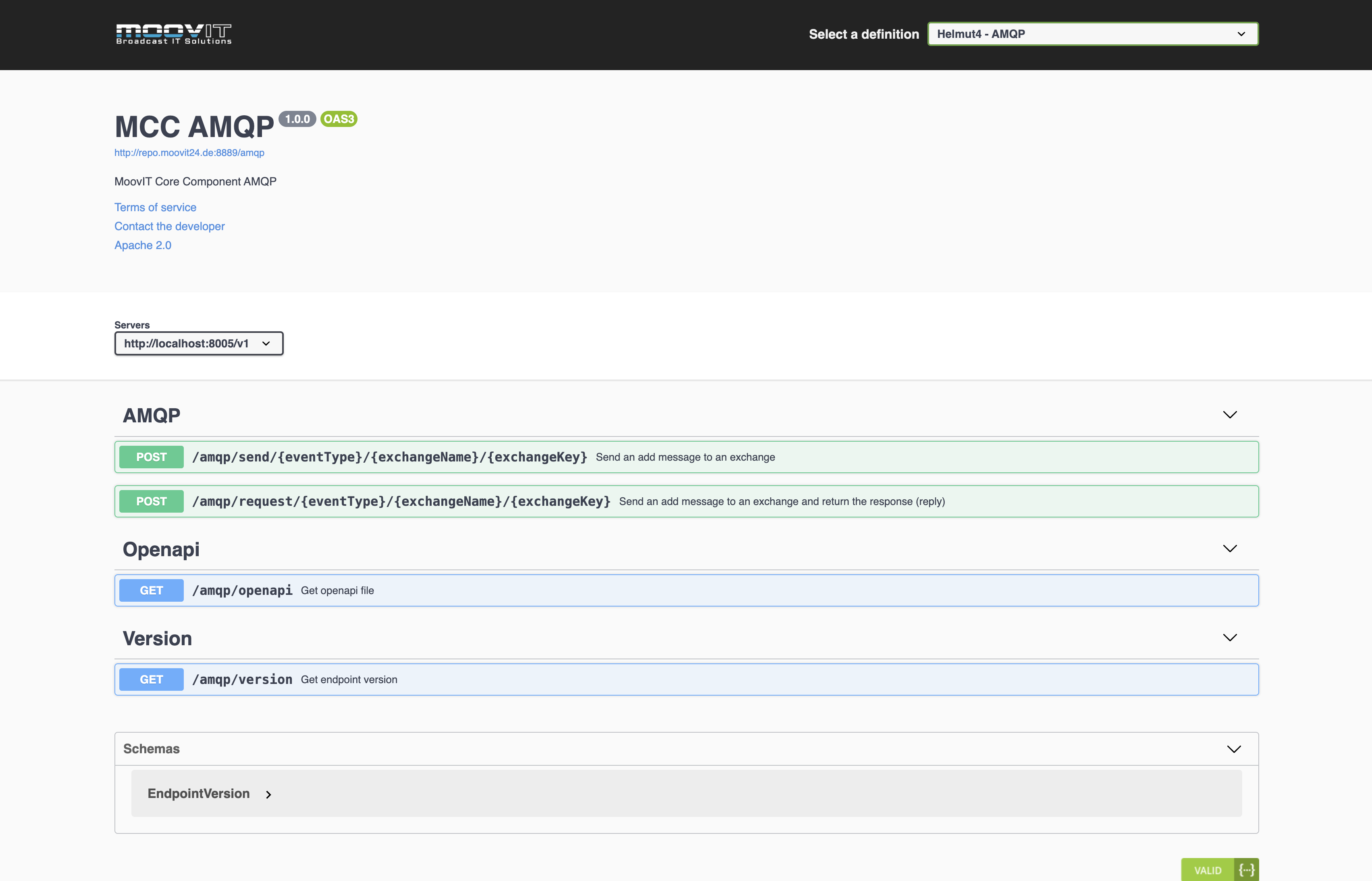

# Open API ## Overview Helmut4 follows an API-first approach, where the entire UI is built on our API. In instances where you wish to automate or integrate Helmut4 with other third-party systems, our open API proves invaluable, providing an extremely powerful set of functionalities. {% hint style="info" %} If you have any questions regarding the use of our OpenAPI, please reach out to our support team via the [support portal ](https://docs.helmut.de/helmut4-releases/v4.10.0/support/requesting-support#moovits-support-portal)for assistance.\ \ Please be aware that the current accessible ***API definition*** is ***always referring*** to the ***latest Helmut4 release***.\ {% endhint %} ## API Documentation - Swagger UI The link to our OpenAPI documentation can be accessed [here](http://repo.moovit24.de:8889/?urls.primaryName=Helmut4%20-%20Users)

## Authentication There are several ways to communicate with the helmut4 API. All options are listed below in an alphabetically list - choose the one which will meet you demands as it's best. ### Basic Access Authentication Basic Access Authentication, commonly known as Basic Auth, is a straightforward method used to authenticate clients when accessing an API. This method requires users to provide a username and password, which are combined into a single string and encoded using Base64 before being sent in the HTTP header. Here’s a deeper look at how it works and some important considerations:

Explanation Basic Auth

1. **How It Works:** * When a client makes a request to a server-protected resource, the server responds with a `401 Unauthorized` status along with a `WWW-Authenticate` header indicating that Basic Auth is required. * The client then resends the request, including an `Authorization` header that contains the encoded credentials in the format: ```markup Authorization: Basic ``` * The server decodes the credentials and verifies them against its authentication store. 2. **Simplicity and Ease of Use:** * Basic Auth is widely supported and easy to implement. * It does not require additional tokens or session management, making it a good choice for quick integrations or low-complexity scenarios. 3. **Security Considerations:** * **Encryption:** Basic Auth only encodes credentials using Base64, which is not encryption but merely an encoding method. As such, it does not provide security by itself. * **Transport Layer Security:** To prevent interception of credentials, it is essential to use Basic Auth over secure channels (HTTPS). * **Exposure Risk:** Without proper transport security, credentials may be exposed to potential attackers through man-in-the-middle attacks.

### Bearer Authentication Bearer Authentication is a token-based security mechanism that protects API endpoints by requiring clients to present a valid token with each request. Here’s an expanded explanation of how it works and key considerations:

Explanation Bearer Token

1. **How It Works:** * **Token Issuance:** A client first obtains an access token—typically after a successful login or through an OAuth 2.0 flow—from an authentication server. * **Token Usage:** The client then includes this token in the HTTP header for each API request in the following format: ```markup Authorization: Bearer ``` * **Server Validation:** Upon receiving the request, the server verifies the token’s validity and permissions before granting access to the requested resource. 2. **Simplicity and Efficiency:** * **Stateless Authentication:** Bearer tokens eliminate the need for server-side sessions by embedding the authentication state within the token itself. * **Ease of Integration:** This method is widely adopted and supported by many frameworks and libraries, making it a popular choice for both mobile and web applications. 3. **Security Considerations:** * **Secure Transmission:** Always use HTTPS when transmitting bearer tokens to protect against interception by malicious actors. * **Token Expiration and Revocation:** Tokens should have an expiration time to reduce the risk of misuse if compromised. Implementing a token revocation mechanism is also recommended for additional security. * **Scope and Permissions:** Ensure tokens are granted only the necessary permissions, following the principle of least privilege, to minimize potential damage if a token is leaked. * **Storage Security:** Store tokens securely on the client side (e.g., in secure HTTP-only cookies or secure storage mechanisms) to prevent unauthorized access.

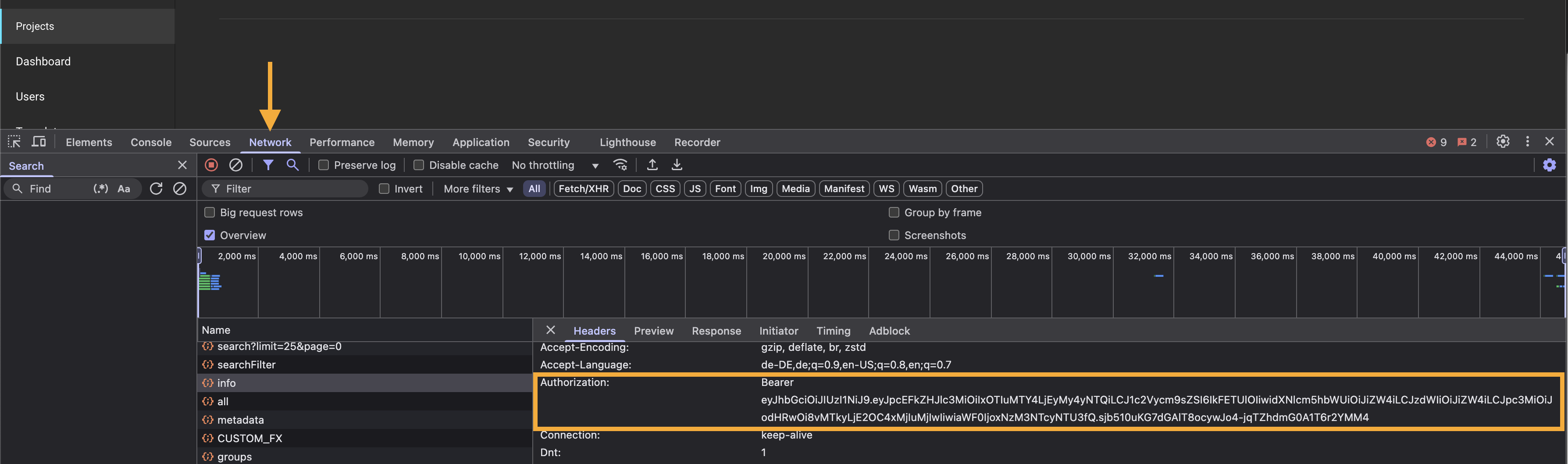

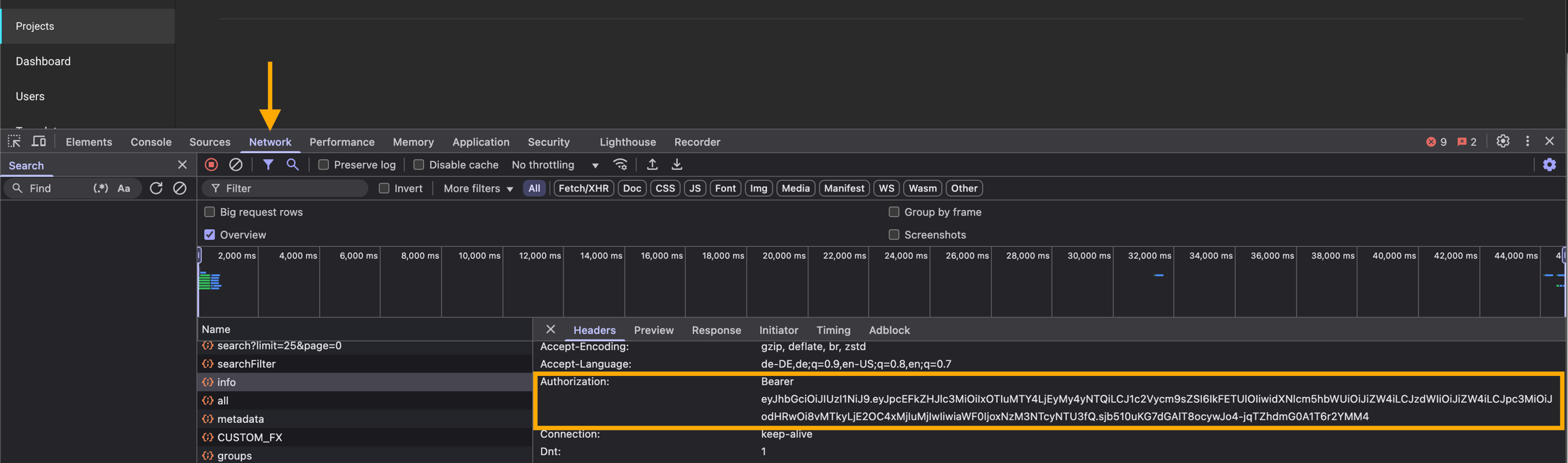

### Options to retrieve a Bearer Token There are several methods for obtaining a Bearer token from helmut4.\ Below are three common approaches: #### Using Browser Developer Tools * **Access the Developer Tools:**\ Most modern browsers allow you to open the Developer Tools by pressing **F12**. * **Monitor Network Traffic:**\ Navigate to the **Network** tab. Then, either switch to another section of the application (e.g., the Projects tab) or reload the website. * **Locate the Token:**\ Multiple network requests will be listed. Look for entries that include an **Authorization** header. The Bearer token will be visible as part of these requests. You can inspect these entries to copy the token.

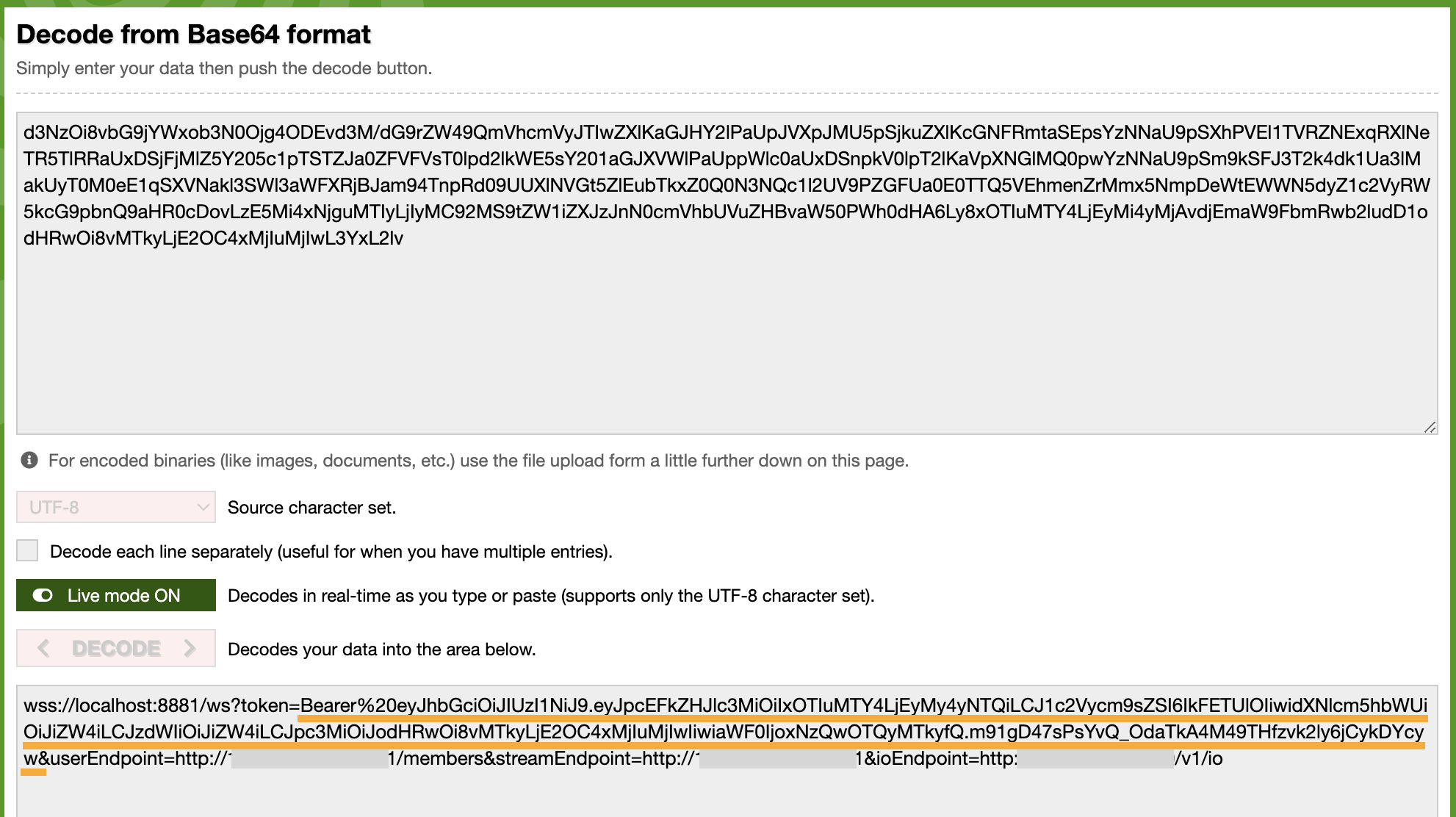

#### Using an Autologin File * **Open the Autologin File:**\ Locate an existing [autologin](https://docs.helmut.de/helmut4-releases/v4.10.0/helmut4-components/helmutfx/users#generate-autologin) file or create a new one if needed. * **Decode the File Content:**\ Copy the contents of the file and paste them into a Base64 decoder (for example, [Base64Decode.org](https://www.base64decode.org/)). * **Extract the Token:**\ The decoded output will include a JWT (JSON Web Token) that contains the Bearer token.\ \&#xNAN;*Note:* If you encounter `%20` in the decoded string, remember that it represents an encoded whitespace character. Replace it with an actual space if needed.

**Using OAuth to Retrieve a Bearer Token** OAuth offers a secure and standardized way to obtain a Bearer token for each user. Similar to using an autologin file, an [OAuth key/secret pair](https://docs.helmut.de/helmut4-releases/v4.10.0/helmut4-components/helmutfx/users#oauth) can be generated for every user, allowing dedicated access via the API. 1. **OAuth Key/Secret Generation:**\ Each user is assigned a unique OAuth key and secret. These credentials are used to authenticate against the helmut4 API. 2. **Requesting the Bearer Token:**\ To retrieve the Bearer token, you can make a POST request to the helmut4 OAuth endpoint. The endpoint processes the OAuth key/secret, and if the credentials are valid, returns a Bearer token specific to that user.

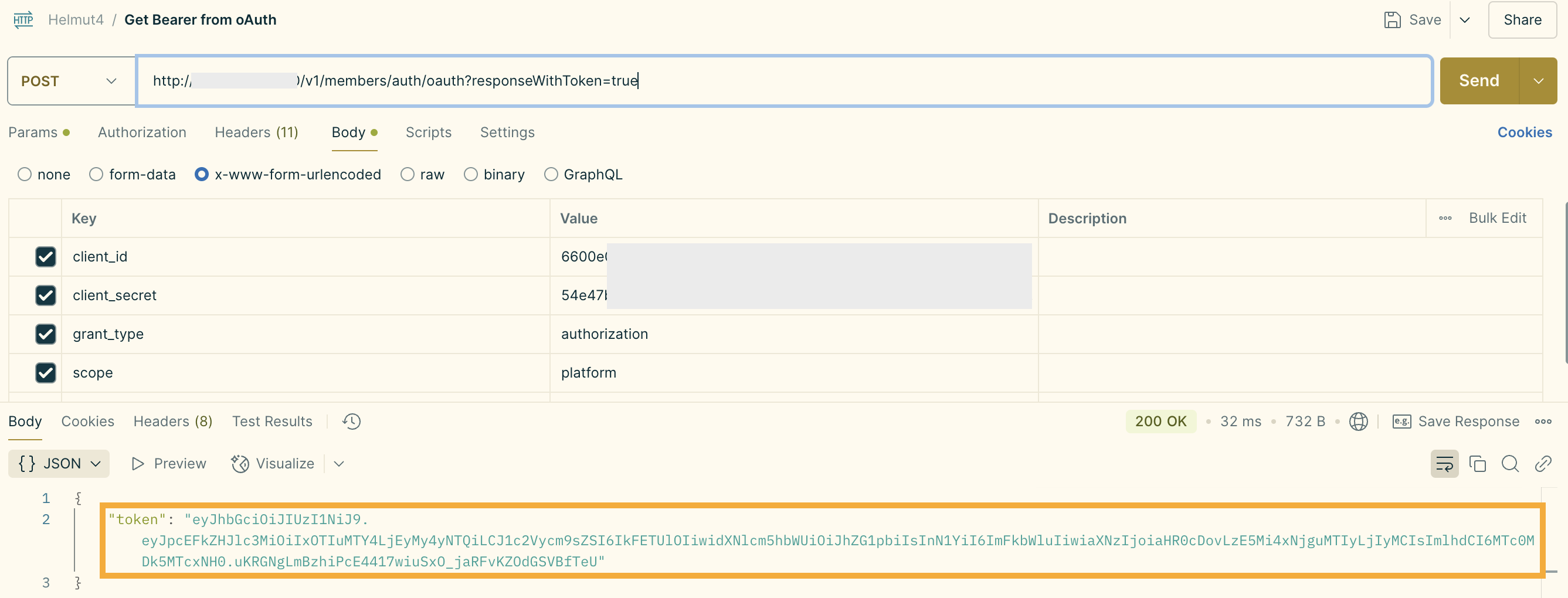

Request Bearer token via oAuth authentication

**Endpoint Details** * **HTTP Method:** POST * **Base URL:** \ * **Path:** `/v1/members/auth/oauth?responseWithToken=true` **Request Headers** * `Content-Type: application/x-www-form-urlencoded` **Request Body** The body of the request should include the following URL-encoded parameters: ```ini client_id=oAuthClientId client_secret=oAuthClientSecret grant_type=authorization scope=platform ``` * **client\_id:** Your OAuth Client ID. * **client\_secret:** Your OAuth Client Secret. * **grant\_type:** Set to `authorization` to indicate the type of OAuth flow. * **scope:** Specifies the access privileges; in this case, it is set to `platform`. The helmut4 API will validate the provided credentials and if the credentials are correct, the API will respond with a Bearer token.
