# CatDV Module

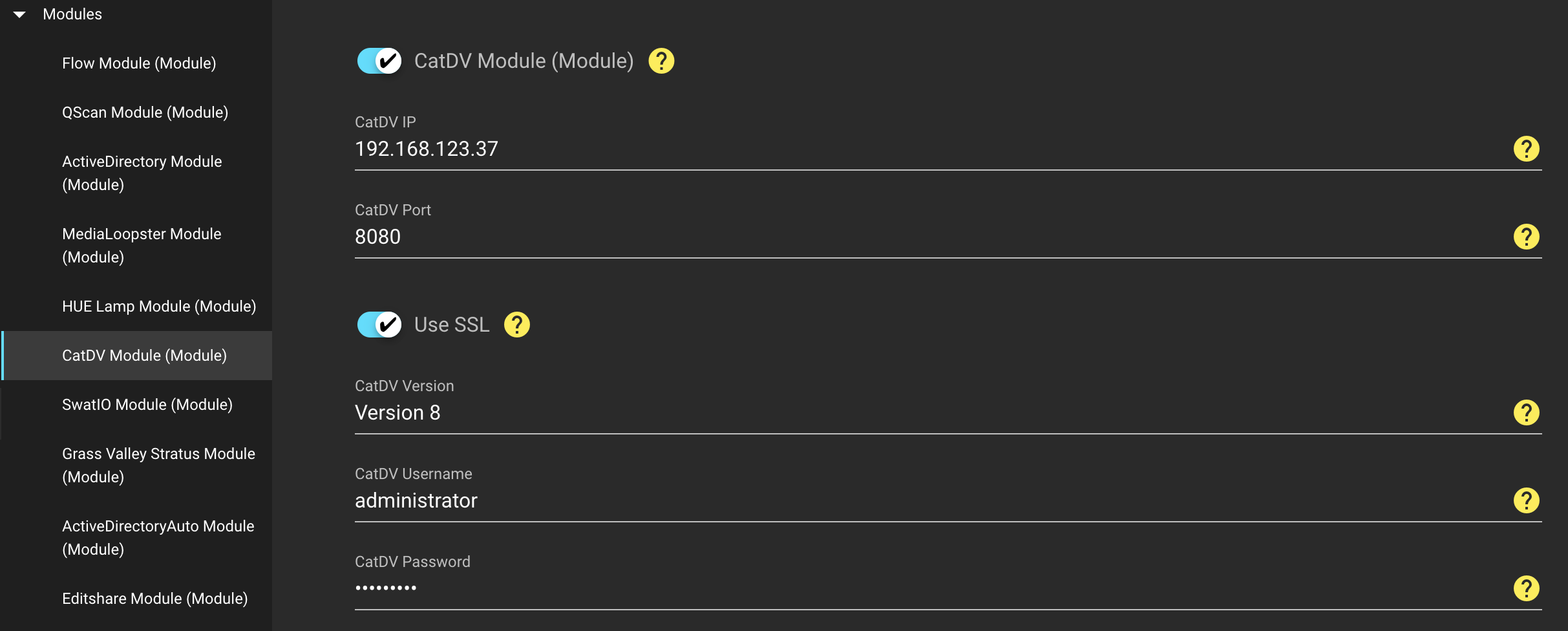

This module enables the communication between the CatDV stream nodes and CatDV (Quantum).

The module is easy to set up and requires the following informations:

* IP address of the CatDV server / endpoint
* Port of the CatDV server/endpoint
* Username of the CatDV Admin user
* Password of the CatDV Admin user
* CatDV Version
* SSL mode

Helmut4 currently only supports CatDV v8.

<figure><img src="https://content.gitbook.com/content/ttnkf7qEIoqtmdv6485i/blobs/c0x1zAkCdJfGdYESi4CX/image.png" alt=""><figcaption><p>CatDV Module</p></figcaption></figure>

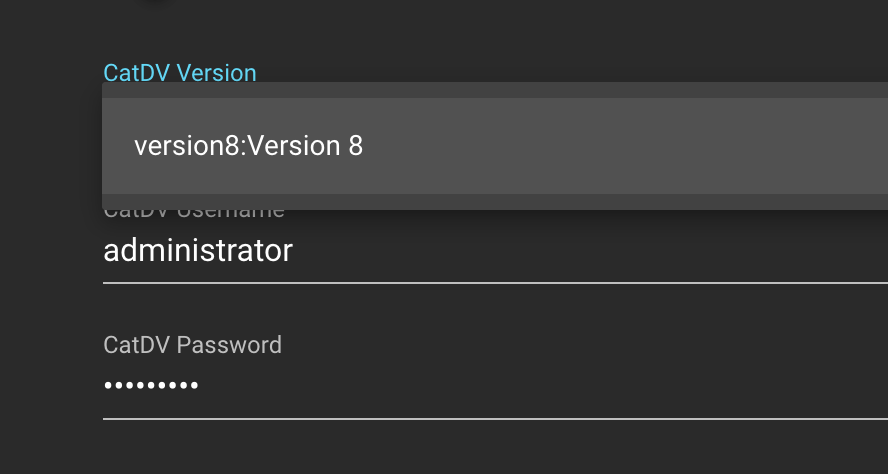

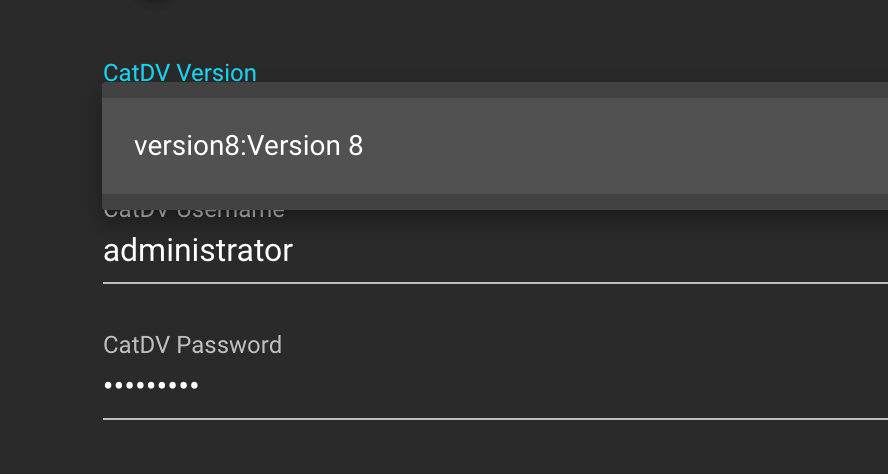

If you are coming from an earlier Helmut4 release (4.0.7 and below), you might see these options in the CatDV Version dropdown. To fix this issue, expand the guideline below.

<figure><img src="https://content.gitbook.com/content/ttnkf7qEIoqtmdv6485i/blobs/YmUv1e6AtqLjNikj1ozp/image.png" alt="" width="375"><figcaption><p>Broken CatDV version dropdown</p></figcaption></figure>

<details>

<summary>Patch wrong CatDV Version dropdown</summary>

The issue for the wrong format of the version is coming from a change, which has been introduced in Helmut 4.0.7.

\
To address this issue, a connection to the mongodb is required - if you need helpt to apply the changes, reach out to the support team.

### mcc\_preferences/preferenceDBO

Wrong / not working yaml-configuration

```yaml
{
    "_id": ObjectId("5e21ee3885ccb3000139c78f"),
    "name": "CatDV Version",
    "type": "SELECT",
    "allowedValues": [
        "version8:Version 8"
    ],
    "_public": true,
    "value": "version8",
    "key": "MODULE_CATDV_VERSION",
    "description": "CatDV Version",
    "category": "Modules",
    "tags": [
        "FX",
        "IO",
        "CO",
        "HK"
    ],
    "_class": "preferences.model.PreferenceDBO"
}
```

#### Working yaml-configuration

```yaml
{
    "_id": ObjectId("5e21ee3885ccb3000139c78f"),
    "name": "CatDV Version",
    "type": "SELECT",
    "allowedValues": [
        "version8:::Version 8"
    ],
    "_public": true,
    "value": "version8",
    "key": "MODULE_CATDV_VERSION",
    "description": "CatDV Version",
    "category": "Modules",
    "tags": [
        "FX",
        "IO",
        "CO",
        "HK"
    ],
    "_class": "preferences.model.PreferenceDBO"
}
```

</details>
