# HTTP Request Action
The HTTP Request Action node is your Swiss-Army-knife for interacting with third-party REST APIs. Use it to send HTTP requests and seamlessly integrate Helmut4 with any REST-based external system.
#### Configurable Settings
* **Async**\
Enable or disable asynchronous execution.
* **Domain Name**\
The base domain of the target API (e.g., `api.example.com`).
* **Path**\
The endpoint path to append to the domain (e.g., `/v1/users`).
* **Method**\
The HTTP verb to use: `GET`, `POST`, `PUT`, `PATCH`, or `DELETE`.
* **Headers**\
A set of request headers in `Key: Value` format.
* **Body**\
The JSON payload to include in the request (for methods that support a body).
* **Skip SSL/TLS Verification**\
Disable certificate validation for HTTPS requests—handy when the endpoint uses a self-signed certificate.
* **Timeout**\
Maximum time (in seconds) to wait for a response.
#### Response Handling
All response data—including the status code, headers, and body—is captured in the node’s response object. You can access it via wildcards:
* [{node.result.?}](/helmut4-releases/v4.11.0/helmut4-components/streamdesigner/wildcards/result-or-return-wildcards-2/node-result.md)
* [{stream.last\_result}](/helmut4-releases/v4.11.0/helmut4-components/streamdesigner/wildcards/result-or-return-wildcards-2/stream-last_result.md)
The object is organized into sections such as **code** (status code), **headers** (response headers) and **body** (response payload), making it easy to extract exactly what you need.

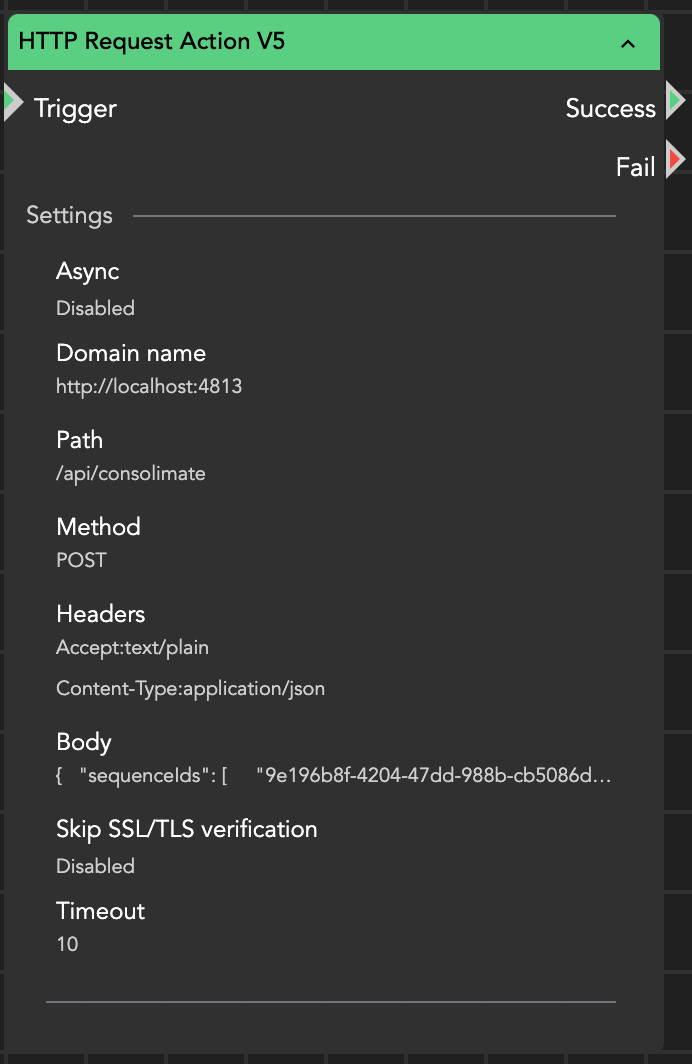

HTTP Request Action
**Example output:**
```json
{
"code":200,
"headers":{
"Transfer-Encoding":[
"chunked"
],
"null":[
"HTTP/1.1 200 OK"
],
"Version":[
"4.10.0"
],
"Vary":[
"Access-Control-Request-Headers",
"Access-Control-Request-Method",
"Origin"
],
"Date":[
"Tue, 06 May 2025 11:51:02 GMT"
],
"Content-Type":[
"application/json"
]
},
"body":{
"id":"5e21ed926d44e10001fdd2e4",
"username":"admin",
"displayname":"admin",
"email":"admin",
"lastLogin":"2025-05-06T07:04:54.585Z",
"isConnected":false,
"isFlowUser":false,
"isRenderNode":false,
"isActiveDirectoryUser":false,
"isOktaUser":false,
"role":"ADMIN",
"os":"mac",
"hostname":"MacBook-Pro.local",
"clientVersion":"4.10.0.8",
"clientSessionToken":"1952e144-c358-46e9-af22-ca4a6f596a19",
"issuer":"http://192.18.122.20",
"failedLoginAttempts":0
}
}
```
---
