# SSL Certificate

### Notes

* This operation will interrupt Helmut's normal operation. Please plan a downtime window and ensure an up-to-date backup is done before changing any configuration.
* Please ensure the SSL certificate is signed and valid
* The .key must be RSA, we do not support elliptic-curve for now
* The .key file should not be password protected
* You need to use X509CO cert format

\
Traefik version 4.0.2.x:\
1.) Copy the certificate (*.crt*) and the (*.key*) files from your computer to the Helmut server */root/certs* folder. Make sure the files are named *server.crt* and *server.key* respectively\
2.) Access Portainer by going to [http://helmut\_server\_address:9000](http://helmut_server_address:9000/)\

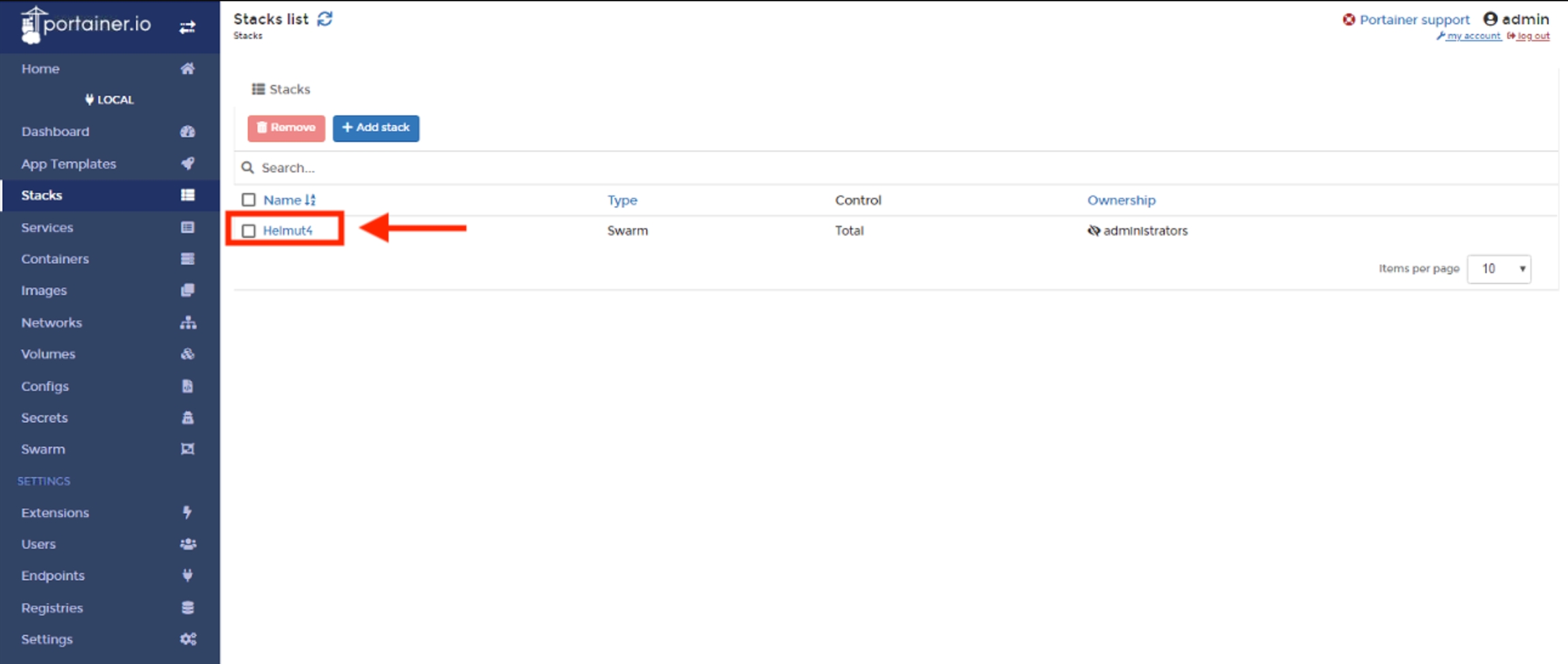

3.) Go to Stacks

<figure><img src="/files/v6SDCyl8rm83ZdPeU06z" alt=""><figcaption></figcaption></figure>

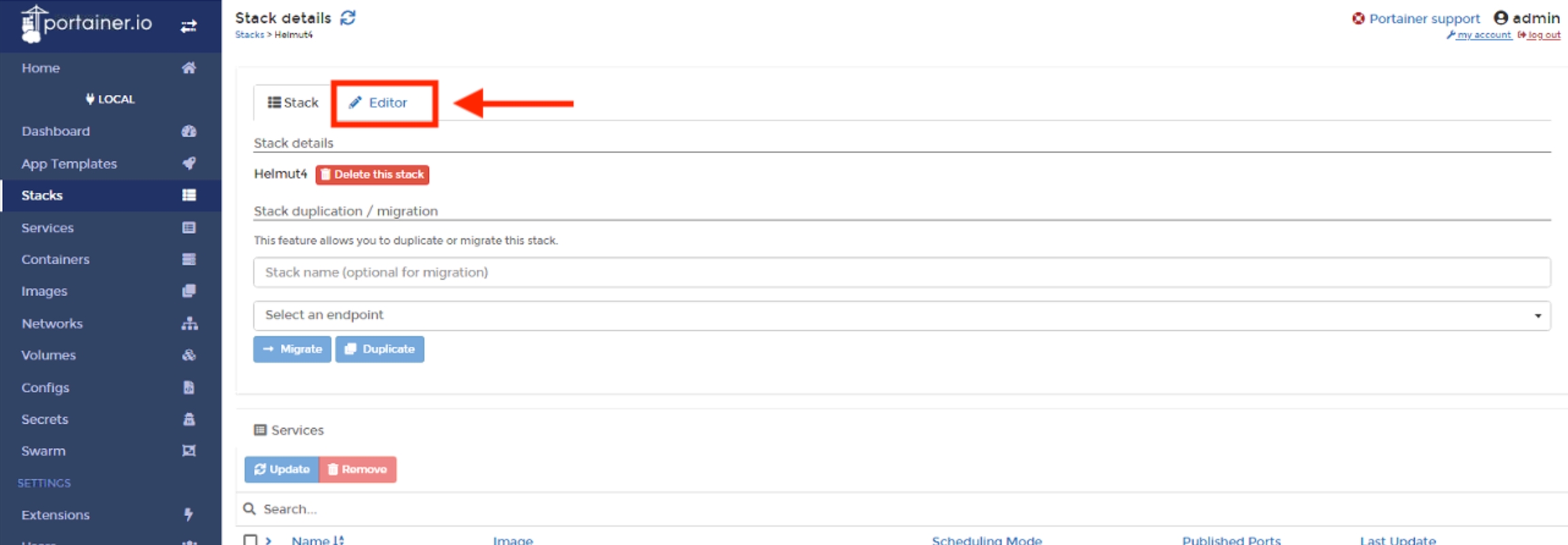

4.) Edit the Helmut4 stack file

<figure><img src="/files/Aeb12JMLUL1PddegBVkk" alt=""><figcaption></figcaption></figure>

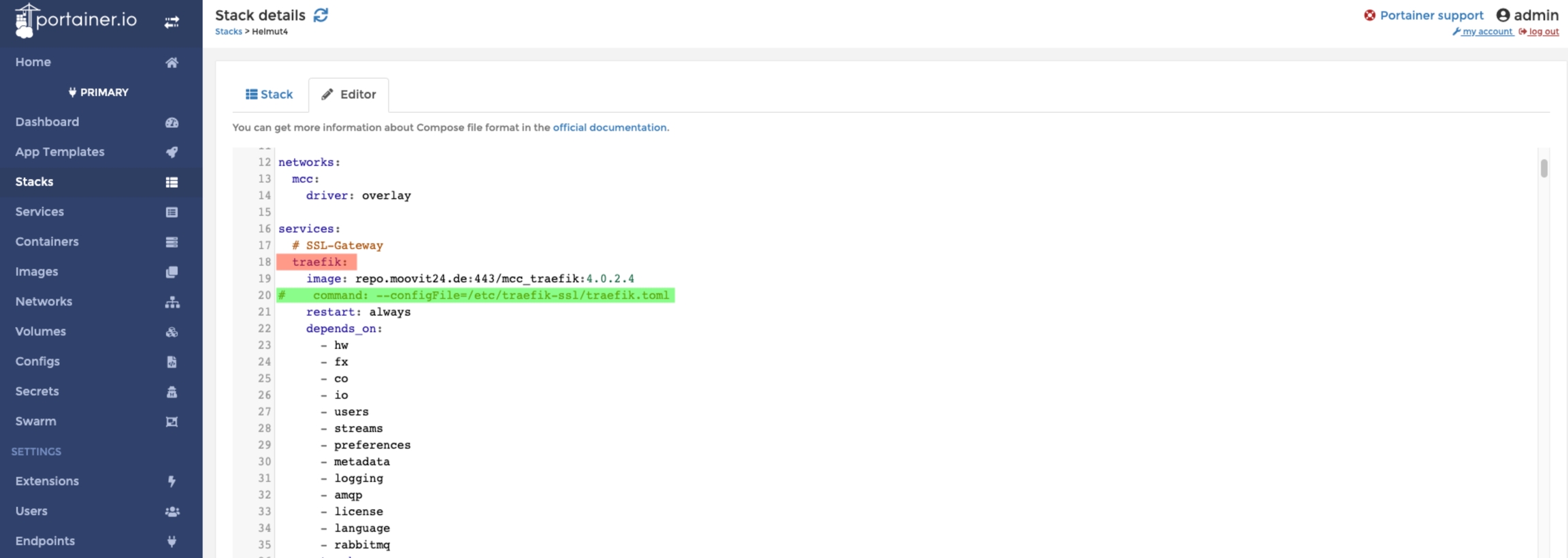

5.) Check the SSL configuration on the Traefik service:

<figure><img src="/files/CePFOCIhdasRexQGSK9E" alt=""><figcaption></figcaption></figure>

Make sure the following configuration&#x20;

```
command: --configFile=/etc/traefik-ssl/traefik.toml
```

is available in your stack file version.\
\
If you **have** this line, and it starts with a #, delete this character to uncomment the line.\
If you **don't** have this line, please add it below the *image:* line\
\

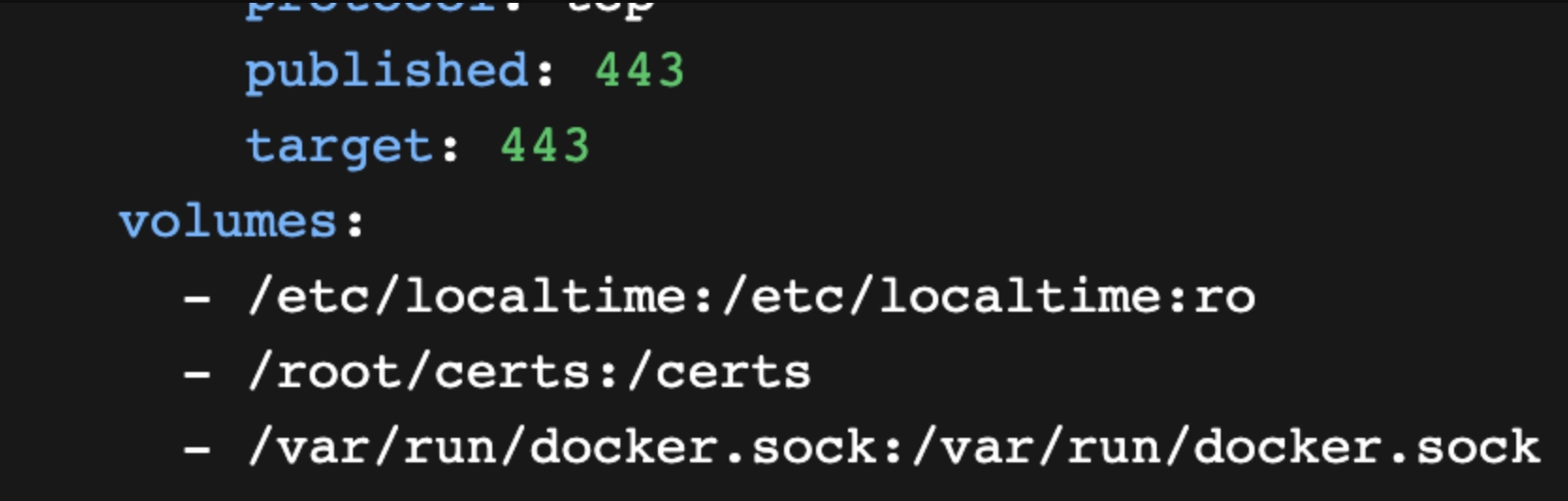

The same with the volumes mount for the certificate which needs to be uncomment by deleting the #

```
- /root/certs:/certs
```

<figure><img src="/files/l1bcyKhgBGTsnaMl1XHT" alt=""><figcaption></figcaption></figure>

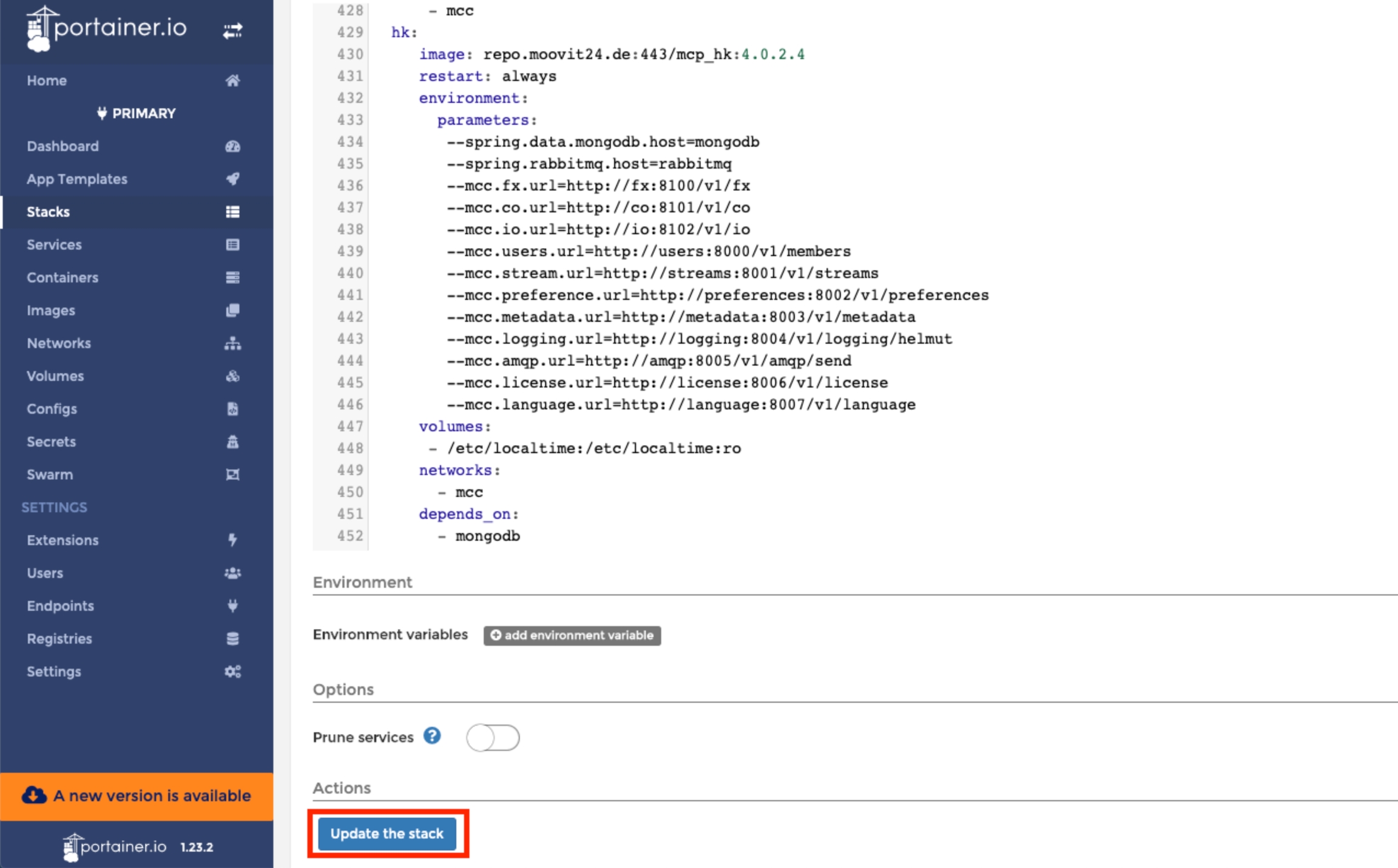

6.) Update the stack file

<figure><img src="/files/MsZTnS6jmlZkeHdY6K8l" alt=""><figcaption></figcaption></figure>

7.) Access Helmut webpage using *https:* and check if the certificate is loaded<br>

### Convert pem certificate in crt / key

If the certificate is a pem one (it doesn't matter if it is a single one or a split one: cert + key) the easiest way to convert pem into a .crt & .key file is to open those in an editor and copy/paste the content in the appropriate server.\* file.\
Attention: please check that there is no empty line at the end of both files as this can lead to problems as we suggest to remove also comments\
\

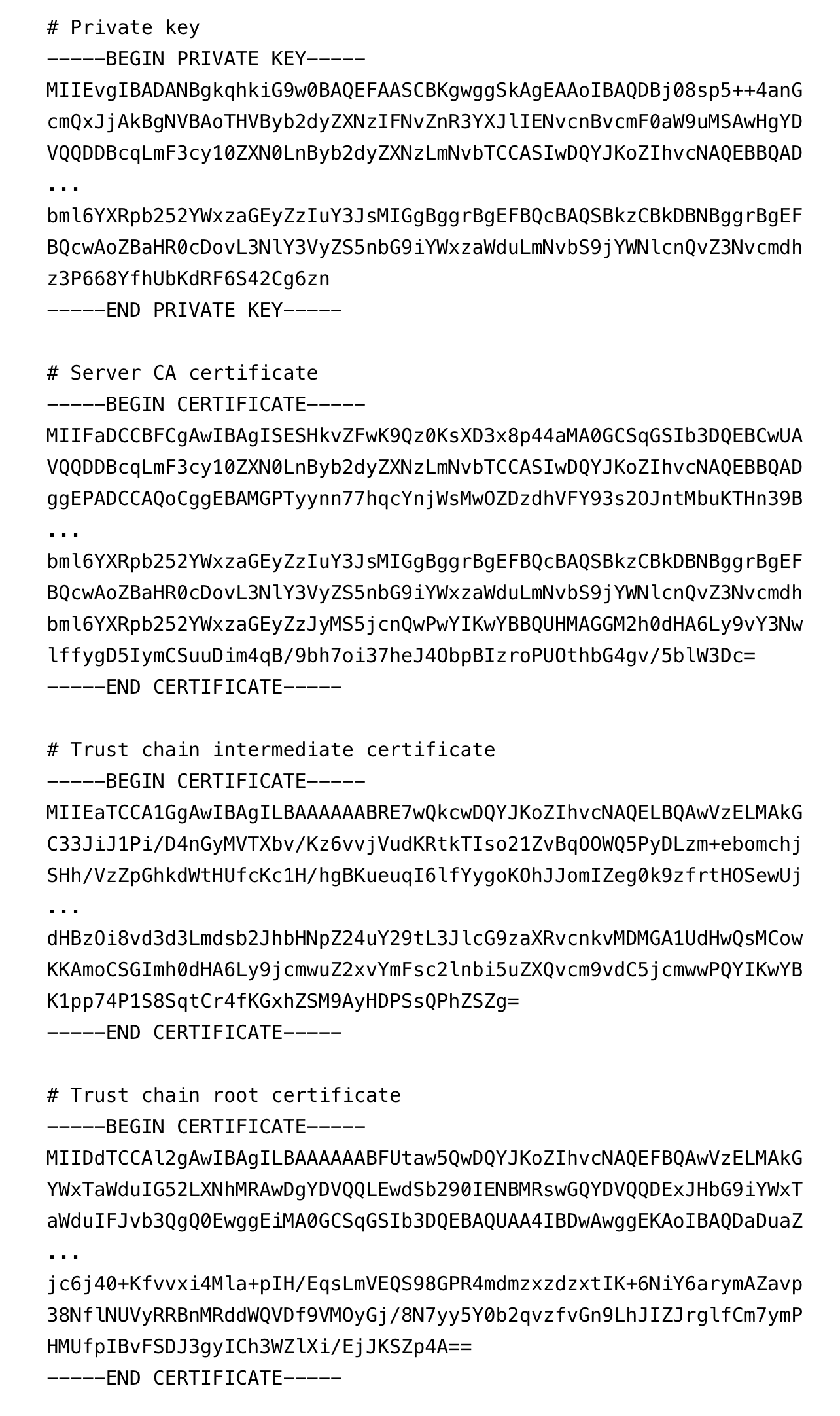

This is an example of a pem containing key & certificate

<figure><img src="/files/tMCqccuObN9XHtSkyh6Q" alt=""><figcaption></figcaption></figure>

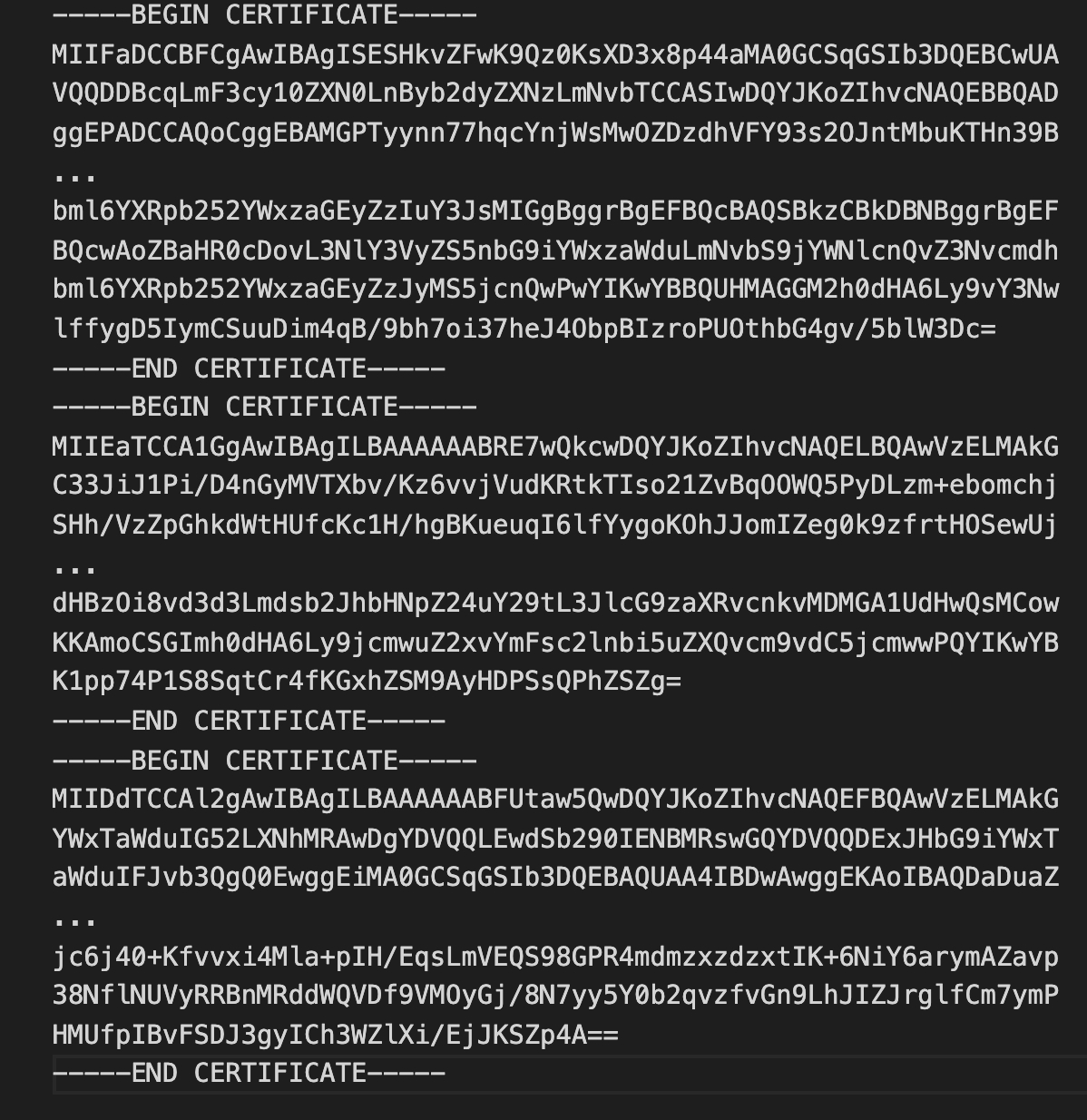

If there are several certificates fo a CA-chain those need to be copied one after another which will look like this:

<figure><img src="/files/9LK1a6Gj9h0jxOSbzCGF" alt=""><figcaption></figcaption></figure>


---
