Table View
In the following the columns of the table view in Streams will be explained. This is how the table looks like:

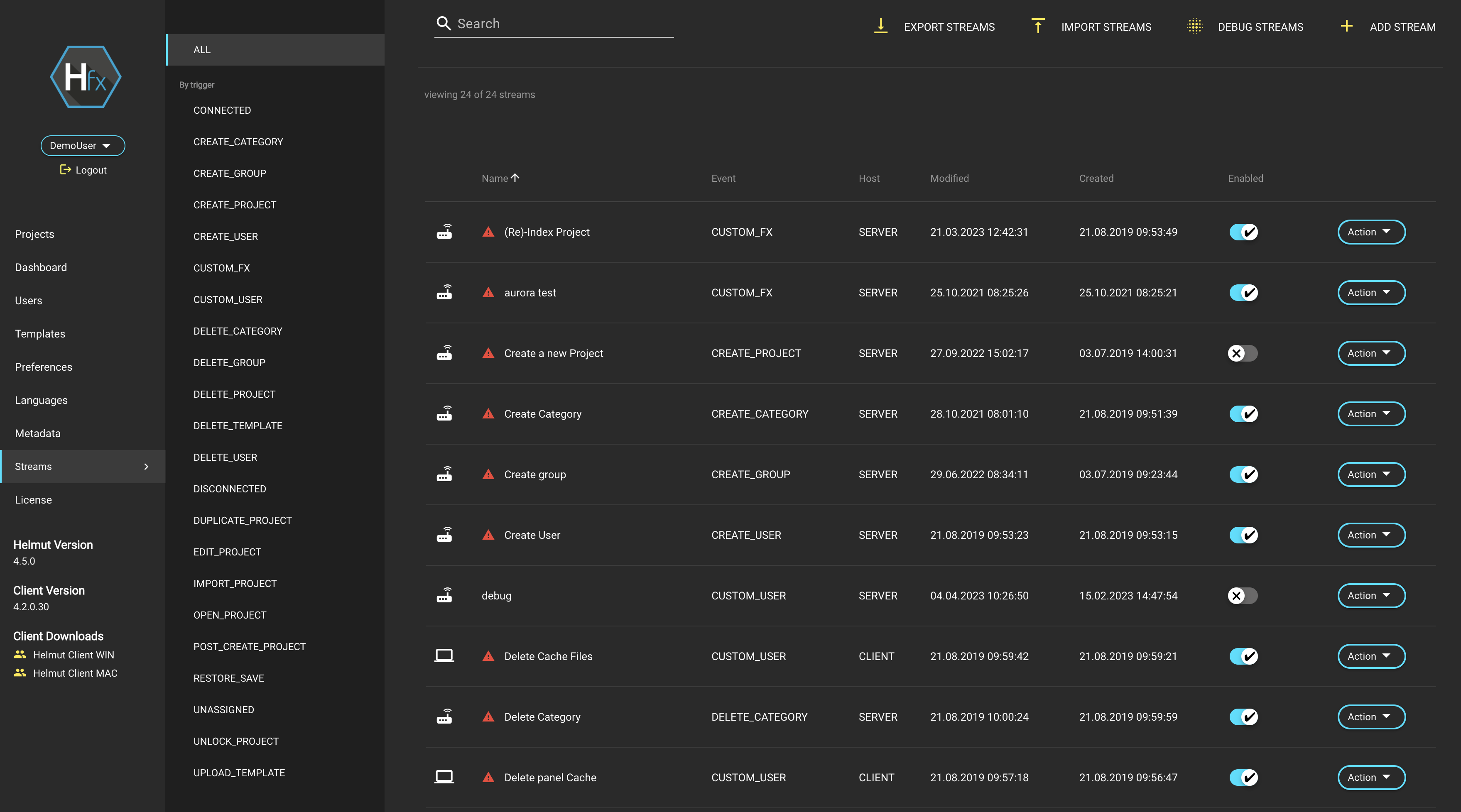

Table view in Streams tab of FX
Modified:
The column Modified displays the date of the last modification of all streams in the format DD.MM.YYYY hh:mm:ss. A modification of a stream can be any change of the stream configuration in the streamdesigner or a renaming.
The reference for the date is the server time.
Created:
The column Created displays the date of the creation of all streams in the format DD.MM.YYYY hh:mm:ss.
Enable Switch:
The Enabled switch allows to enable or disable a stream. In case the switch is set to "disabled" the corresponding stream is not supposed to be triggered and operated. By default all added streams are enabled.

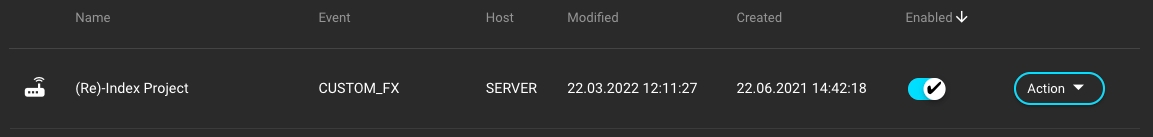

Example: Enabled (Re-)Index Project Stream

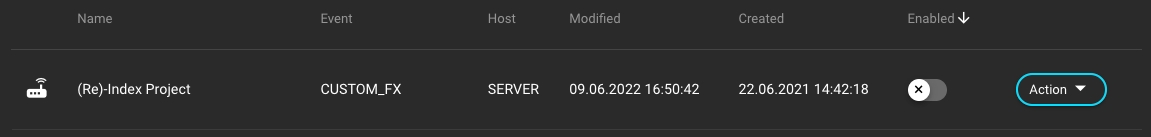

Example: Disabled (Re-)Index Project Stream
Stream Action Menu:
Allows the stream to be edited, renamed and deleted. This can be done at any time. Changes to the stream only take effect when it is saved. If a stream is deleted, it is no longer available.

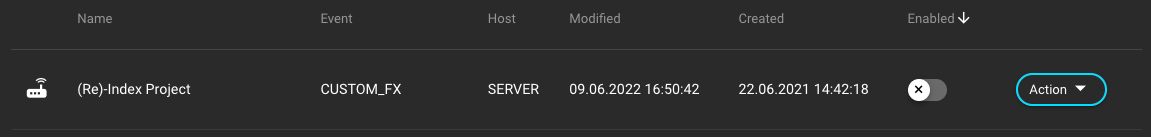

Stream Action Menu in FX

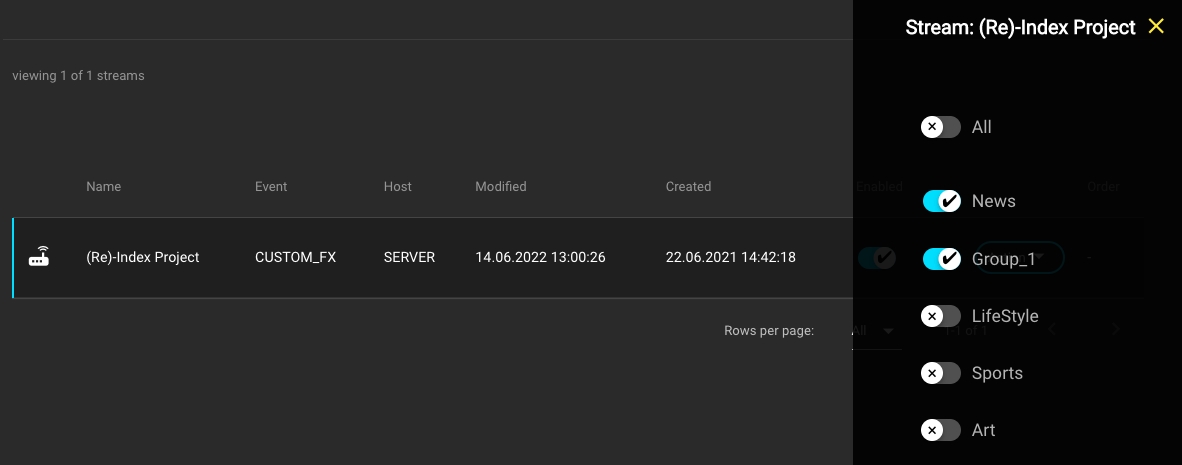

Group Filter for CUSTOM_FX:
CUSTOMFX streams can be assigned to individual groups. This makes it possible to define which CUSTOM_FX streams will appear in FX Projects Action Menu for a particular group and should be accordingly executable. The hidden overlay can be opened by clicking on a blank area of the corresponding stream, where all created groups will be selectable.
