Limit docker container RAM usage

With the release of Helmut 4.8.x and the corresponding update to the Java environment, it is now possible to limit the maximum amount of RAM a container can allocate.

New Helmut4 Installation

By default, this RAM limitation setting is included in every new Helmut4 installation, whether it is a single server or a cluster. This setting is now a default parameter in the stack YAML file.

Updating Existing Helmut4 Installations

Existing Helmut4 installations can be updated to use the same resource allocation settings. To implement this change, users need to update the stack YAML configuration.

You can download the default stack YAML file from our repository for reference:

• Single Server: https://repo.moovit24.de/install/config/docker-compose.yml

• Cluster System: https://repo.moovit24.de/install/config/docker-compose-swarm.yml

Please note that you may need to adjust these values to meet your system's requirements.

For example, a system with high I/O and CPU demands might require increased memory for linked containers such as io, co and mongodb.

Example

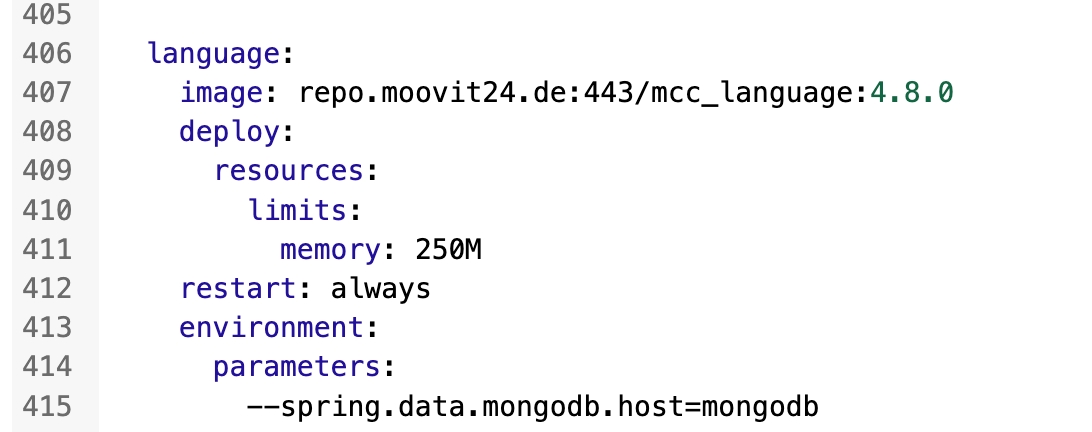

Here is an example screenshot of the language container:

language image with ram limit

Generic resource configuration template

Single Server

deploy:
   resources:
      limits:
         memory: 250M

Cluster Server

deploy:
   mode: global
   #mode: replicated
   resources:
      limits:
         memory: 250M

Default RAM limits

The following values can be considered as defaults:

Container / Image	Memory (MB)
traefik	250
hp	100
hw	100
fx	1500
io	2000
co	2000
hk	1500
users	1500
streams	2000
preferences	500
metadata	250
logging	250
amqp	250
license	250
language	250
cronjob	250
mongodb / mongodbrs	2000
mongodb_backup	250
mongodb_admin	250
rabbitmq	2000
hc (linux client)	2500
