Profiles

Introduction

In contrast to FX, where streams can be executed by a client or server directly for various short-lived workflows (taking into account the stream timeout after 60 seconds), streams within the IO, CO & HK environment typically have a longer runtime and may require assignment to other render nodes with higher priority.

To address this scenario, profiles can be generated to meet all these requirements:

  • Attach a Metadata Set

  • Set job priority

  • Assign a profile/stream to specific group(s)

  • Hide it from users

  • Assign the job to dedicated user(s) or render node(s)

HelmutIO - Profiles

Profiles are used to describe connections between workflows, metadata, user groups, and render nodes/users.

They help define who can see and execute a specific profile, what information is sent when a job is carried out, and which render nodes in the pool can handle the job.

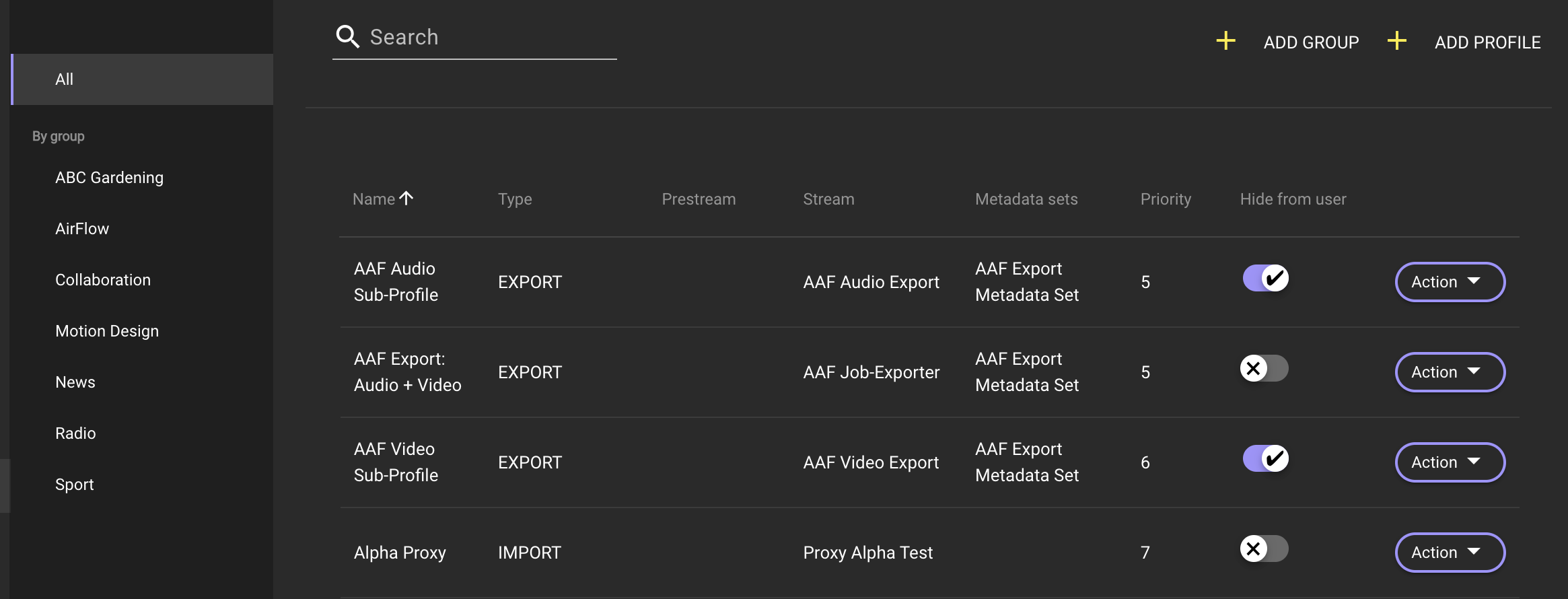

Profiles Management Overview

In this section, we will provide explanations for all relevant functions and fields related to profile management.

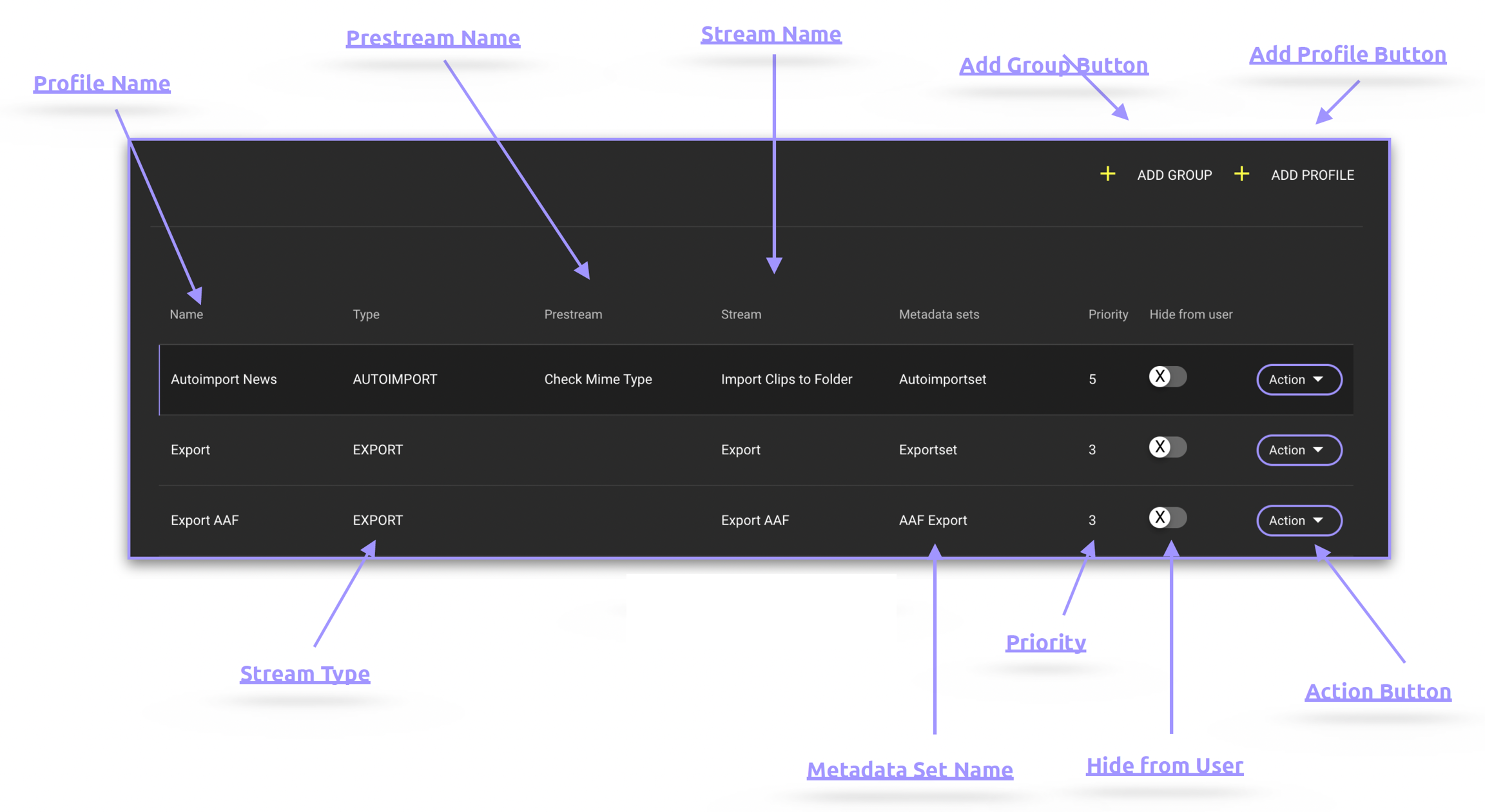

Profile List

Profile Name

Displays the name assigned to the profile by its creator.

Stream Type

Shows the type of stream used in the selected profile. Clicking on the name opens the stream in the Stream Designer for further customization.

Prestream Name

Indicates the name of the Prestream used in the selected profile. Clicking on the name opens the stream in the Stream Designer.

Stream Name

Presents the name of the stream used in the selected profile. Clicking on the name opens the stream in the Stream Designer.

Metadata Set Name

Shows the name of the metadata set used in the selected profile. Clicking on the name switches the view to metadata.

Priority

Displays the default priority assigned to the profile.

Add Group Button:

Initiates a dialog for entering the name of a new group by using the FX - Create_Group trigger. Clicking "Cancel" ends the dialog, and clicking "Save" creates the group. The "Save" option is linked to the Streams trigger.

Action Button

Enables the user to perform various actions on existing profiles, including deletion, duplication, and editing.

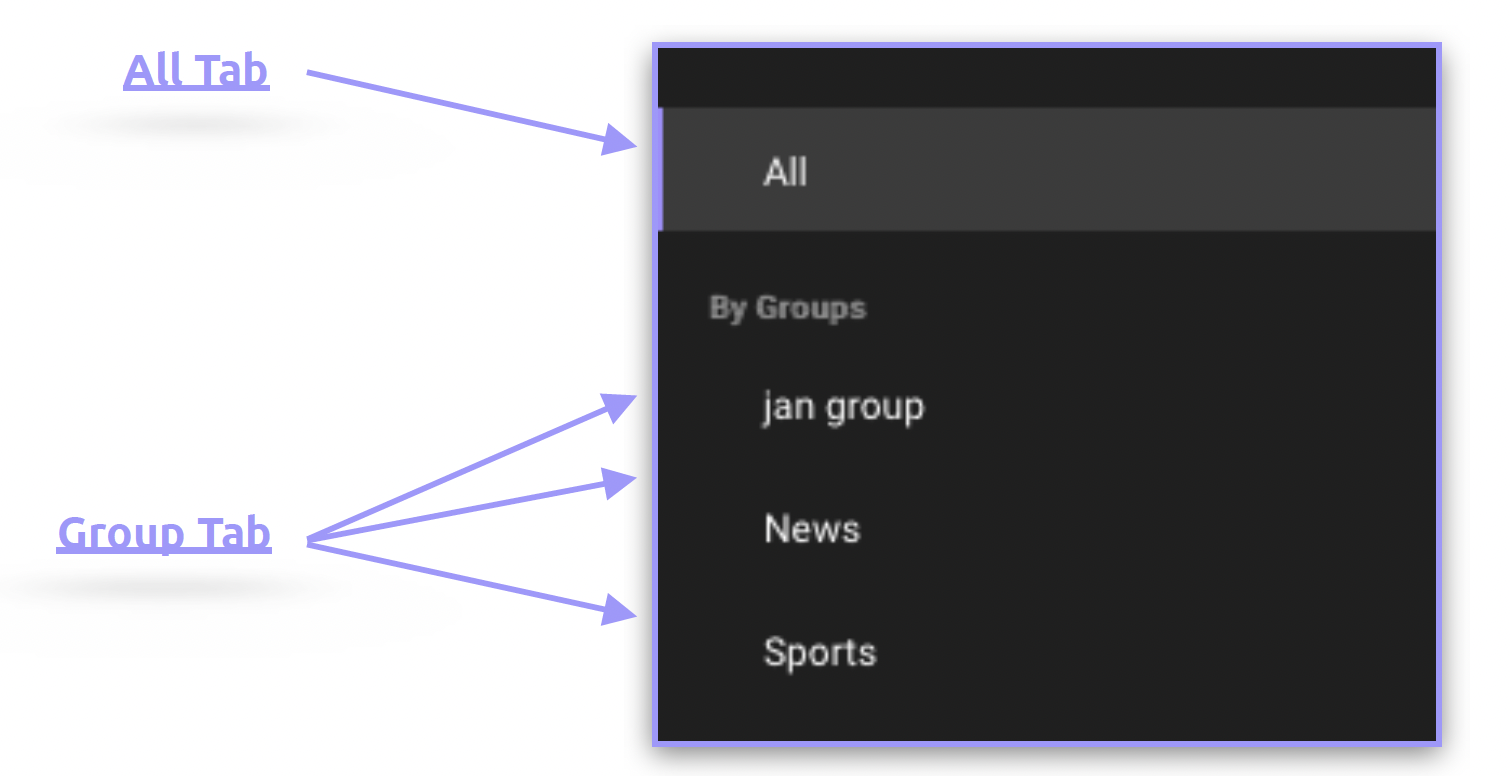

IO - Sidebar Menu

All Tab

Displays all profiles created in the system.

Group Tab

Displays all profiles created in the system and filters the profiles displayed in the list view when selecting a group.

Managing Profile Display: Helmut Panel and Website

The profiles will be displayed in alphabetical order based on their profile names whenever they appear in a list or dropdown view.

The only way to modify the listing is by renaming a profile or by adding a prefix (numeric or character-based).

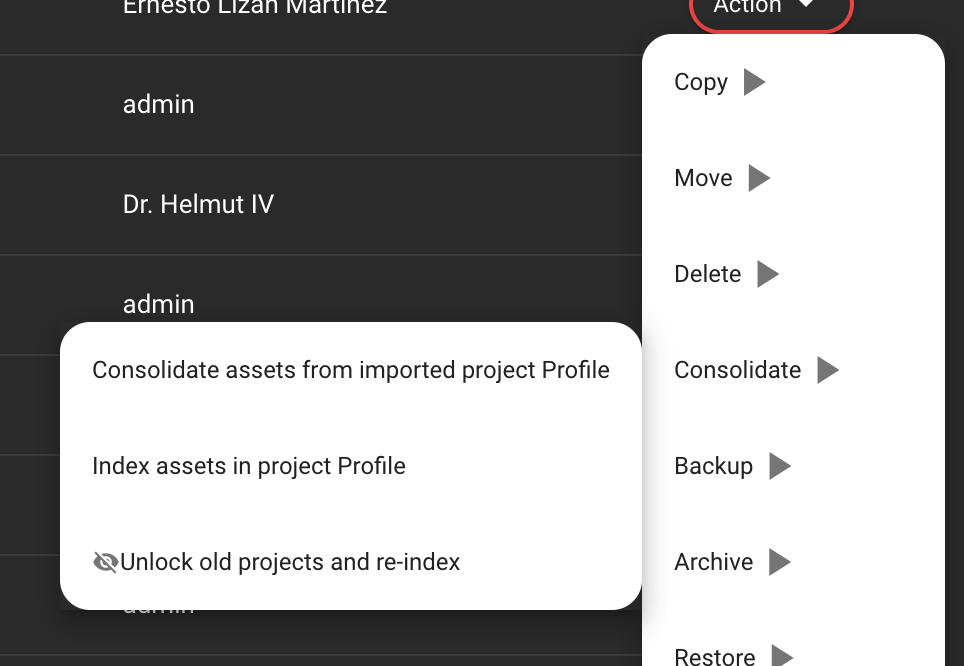

Listed Profiles in HK

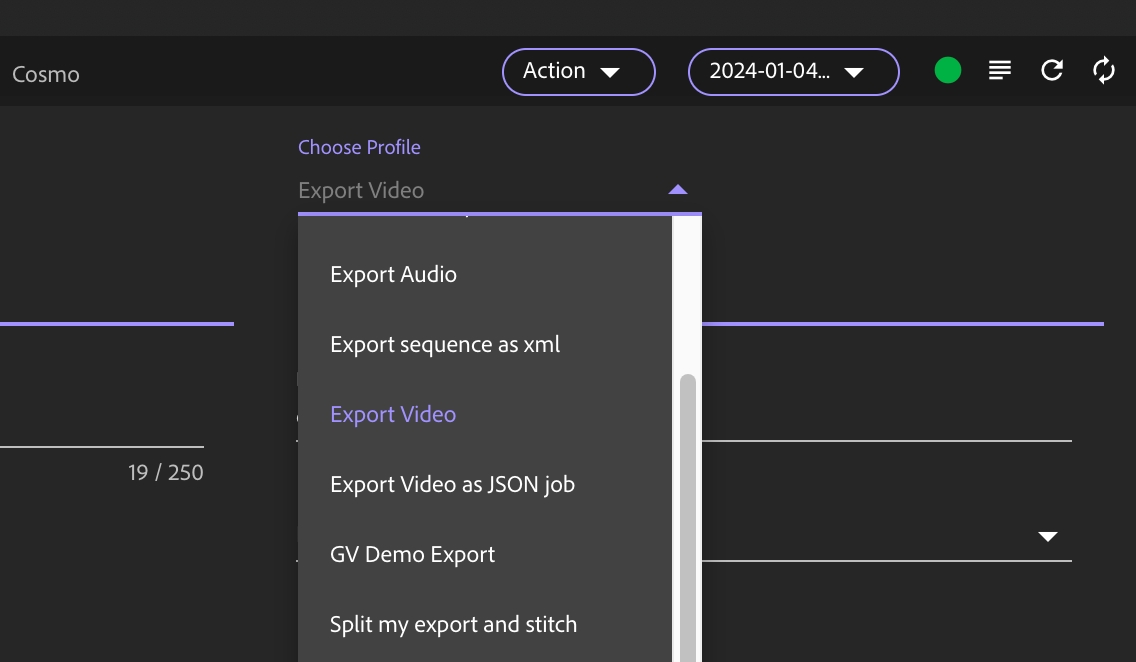

Listed Export Profiles in Panel

Profile-Job Processing Hierarchy

Jobs created by a profile are executed based on their priority. Lower numerical values (e.g., 1) indicate higher priority and are processed before higher values (e.g., 9).

This rule applies to all profiles (within IO, CO, and HK) that have only a "main" stream assigned to any actively connected client.

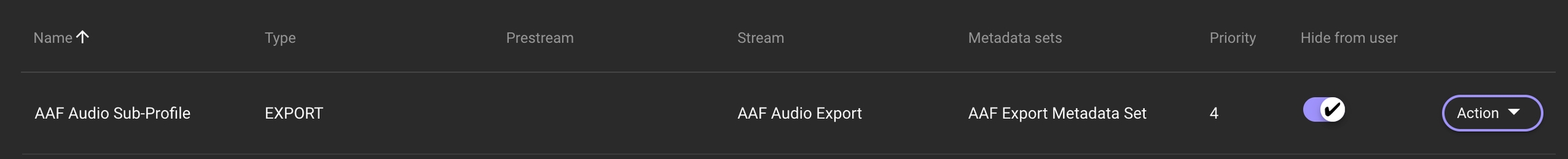

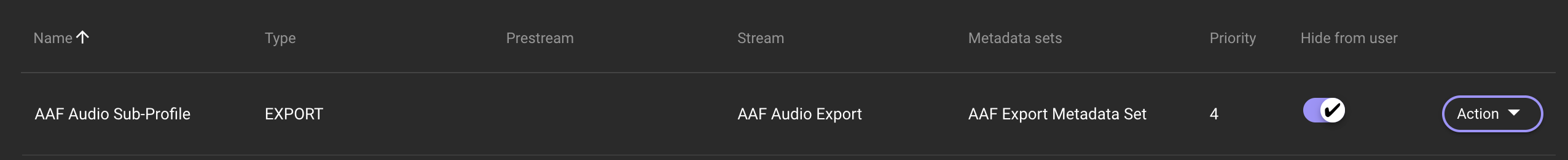

Profile with only a main stream

When a profile includes both a pre-stream and a main stream, an additional scheduling layer is introduced. In this case, pre-streams are always executed before the main stream. This means that if multiple jobs are created simultaneously with priorities ranging, for example, from 1 to 10, all pre-streams will be executed in order of their priority before any main streams are processed.

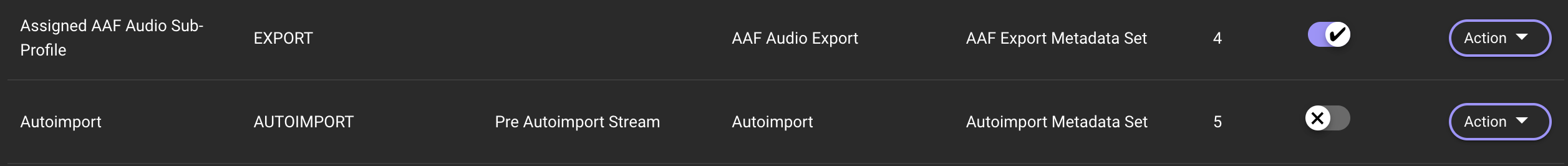

Profile with a pre- & main stream

Example 1: Adding 100 streams to a watch folder triggers a profile that includes both a pre-stream and a main stream, each assigned a priority of 5.

When the watch folder begins processing, another profile is triggered that contains only a main stream with a priority of 1.

The main stream with priority 1 will execute only after all 100 pre-streams (each with a priority of 5) have been completed, after which the 100 watch folder jobs will be processed.

Execution Flow - example 1:
           +-----------------------------------+
           |        Profile 1 (Watch Folder)   |
           |  100 Streams:                     |
           |    - Pre-Stream (Priority 5)      |
           |    - Main Stream (Priority 5)     |
           +-----------------------------------+
                         |
   (Step 1) Execute all 100 Pre-Streams (P5)
                         |
                         v
           +-----------------------------------+
           |      Profile 2 (Triggered)        |
           |   1 Stream:                       |
           |     - Main Stream (Priority 1)    |
           +-----------------------------------+
                         |
   (Step 2) Execute Profile 2 Main Stream (P1)
                         |
                         v
           +-----------------------------------+
           |        Profile 1 (Watch Folder)   |
           |   (Continuation)                  |
           |   100 Streams:                    |
           |     - Main Stream (Priority 5)    |
           +-----------------------------------+
                         |
   (Step 3) Execute all 100 Main Streams (P5)

Example 2: Adding 200 streams to a watch folder triggers a profile that includes both a pre-stream and a main stream, each assigned a priority of 5.

When the watch folder begins processing, another profile is triggered that contains both a pre-stream and a main stream with a priority of 1.

The pre-stream with priority 1 will be executed immediately upon being added to the queue; afterward, the pending pre-streams with priority 5 will be processed.

Once all the pre-streams are finished, the main stream with priority 1 will be executed, followed by the 200 watch folder jobs with priority 5.

Execution Flow - example 2:
               +-------------------------------------+
               |          Profile A (Watch Folder)   |
               |   200 Streams:                      |
               |     - Pre-Stream (Priority 5)       |
               |     - Main Stream (Priority 5)      |
               +-------------------------------------+
                         |
       (Step 2) Execute all 200 Pre-Streams (P5)
                         |
                         v
               +-------------------------------------+
               |         Profile B (Triggered)       |
               |    1 Stream:                        |
               |      - Pre-Stream (Priority 1)      |
               |      - Main Stream (Priority 1)     |
               +-------------------------------------+
                         ^
       (Step 1) Execute Profile B Pre-Stream (P1) immediately upon queue addition
                         |
       (After Step 2) Resume Execution
                         |
       (Step 3) Execute Profile B Main Stream (P1)
                         |
                         v
               +-------------------------------------+
               |         Profile A (Watch Folder)    |
               |         (Continuation)              |
               |    200 Streams:                     |
               |      - Main Stream (Priority 5)     |
               +-------------------------------------+
                         |
       (Step 4) Execute all 200 Main Streams (P5)
