iFrame - Third Party Metadata

iFrame Feature Overview

The iFrame feature in Helmut4 allows basic data exchange between Helmut4 and any web-based third-party application — without requiring deep or complex integration.

The exchanged data is treated as the value of a THIRD_PARTY type metadata field within Helmut4. This value can then be used throughout the Helmut4 system wherever metadata is applied — such as in FX Projects, CO Assets, IO Jobs, and HK-related project or asset workflows.

Technical Implementation

This feature uses the window.postMessage() method to enable communication between the Helmut4 environment and the embedded third-party application inside the iFrame. This method allows secure cross-origin messaging between the parent page (Helmut4) and the embedded iFrame (the third-party app).

Sending Data Back to Helmut4

To send data from a third-party app back to Helmut4, the app must use the following approach:

const h4url = urlParams.get("h4url"); // Gets the Helmut4 URL for messaging
const payload: string = someData; // If sending an object, use JSON.stringify(someData)

window.parent.postMessage(
  payload, // The actual data to send
  h4url    // The target Helmut4 origin
);

CORS Requirements

In order for this communication to work, the third-party application must also configure Cross-Origin Resource Sharing (CORS) settings to allow the Helmut4 domain to embed it via iFrame. This typically means updating the server configuration to include Helmut4’s domain in the Access-Control-Allow-Origin header.

Setup in Helmut4 – Creating a Project with a Third-Party iFrame

Step 1: Create a Metadata Field

  1. In Helmut4, create a new metadata field.

  2. Set the type to THIRD_PARTY.

  3. In the Default value field, enter the URL of the third-party web application.

✅ Example: For testing, you can spin up a local web server at http://127.0.0.1:9999 that serves a basic HTML page with a dropdown. The selected value from this page will be sent back to Helmut4.

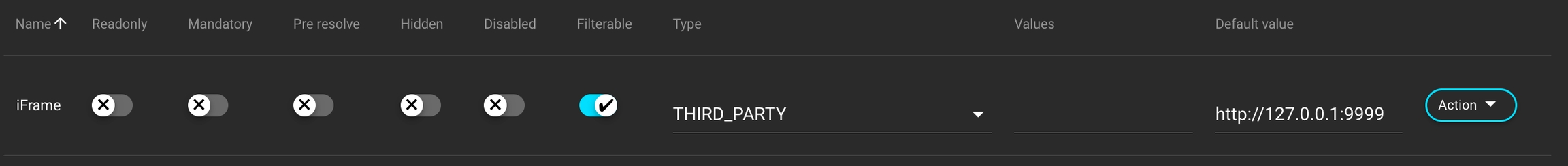

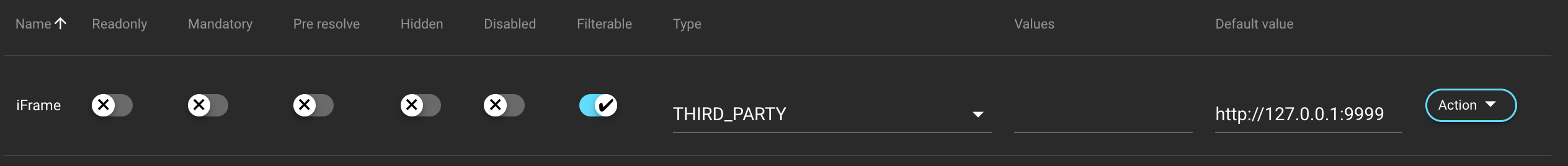

iFrame metadata - third party
🧪 Local Test Web Server for iFrame Integration

Make sure your HTML file is named index.html, and use the code provided in the Example HTML Page section for the test payload.

macOS:

cd /path/to/your/html/files
python3 -m http.server 9999

Windows:

$filepath = "C:\temp\index.html"
Start-Process powershell -ArgumentList "-NoExit", "-Command", {
    param($filepath)
    Add-Type -AssemblyName System.Net.HttpListener
    $listener = New-Object System.Net.HttpListener
    $listener.Prefixes.Add("http://localhost:9999/")
    $listener.Start()
    Write-Host "Serving on http://localhost:9999/"

    while ($listener.IsListening) {
        $context = $listener.GetContext()
        $response = $context.Response
        $html = Get-Content $filepath -Raw
        $buffer = [System.Text.Encoding]::UTF8.GetBytes($html)
        $response.ContentLength64 = $buffer.Length
        $response.OutputStream.Write($buffer, 0, $buffer.Length)
        $response.Close()
    }
} -ArgumentList $filepath

Step 2: Example HTML Page (Third-Party App)

Here is the code for a simple web page (index.html) that sends a selected value back to Helmut4:

<!DOCTYPE html>
<html>
<head>
  <title>Third Party App</title>
</head>
<body style="background-color: #f0f0f0;">
  <h1>Welcome to the third-party app</h1>

  <select id="myDropdown">
    <option value="option1">Option 1</option>
    <option value="option2">Option 2</option>
    <option value="option3">Option 3</option>
  </select>

  <button id="myButton">Submit</button>

  <script>
    const urlParams = new URLSearchParams(window.location.search);
    const h4url = urlParams.get("h4url");

    let selection = "option1";

    document.getElementById("myDropdown").addEventListener("change", function () {
      selection = this.value;
    });

    document.getElementById("myButton").addEventListener("click", function () {
      const payload = JSON.stringify({ someId: selection });

      window.parent.postMessage(payload, h4url);
    });
  </script>
</body>
</html>

Note: Ensure your server has proper CORS settings to allow embedding in Helmut4.

Step 3: Assign Metadata to a Group

  1. Assign the newly created THIRD_PARTY metadata field to a metadata group.

  2. Open the Add Project dialog using that group.

  3. You’ll see the new metadata field as a button with the same label as the field name.

    • A white circle means no value is currently set.

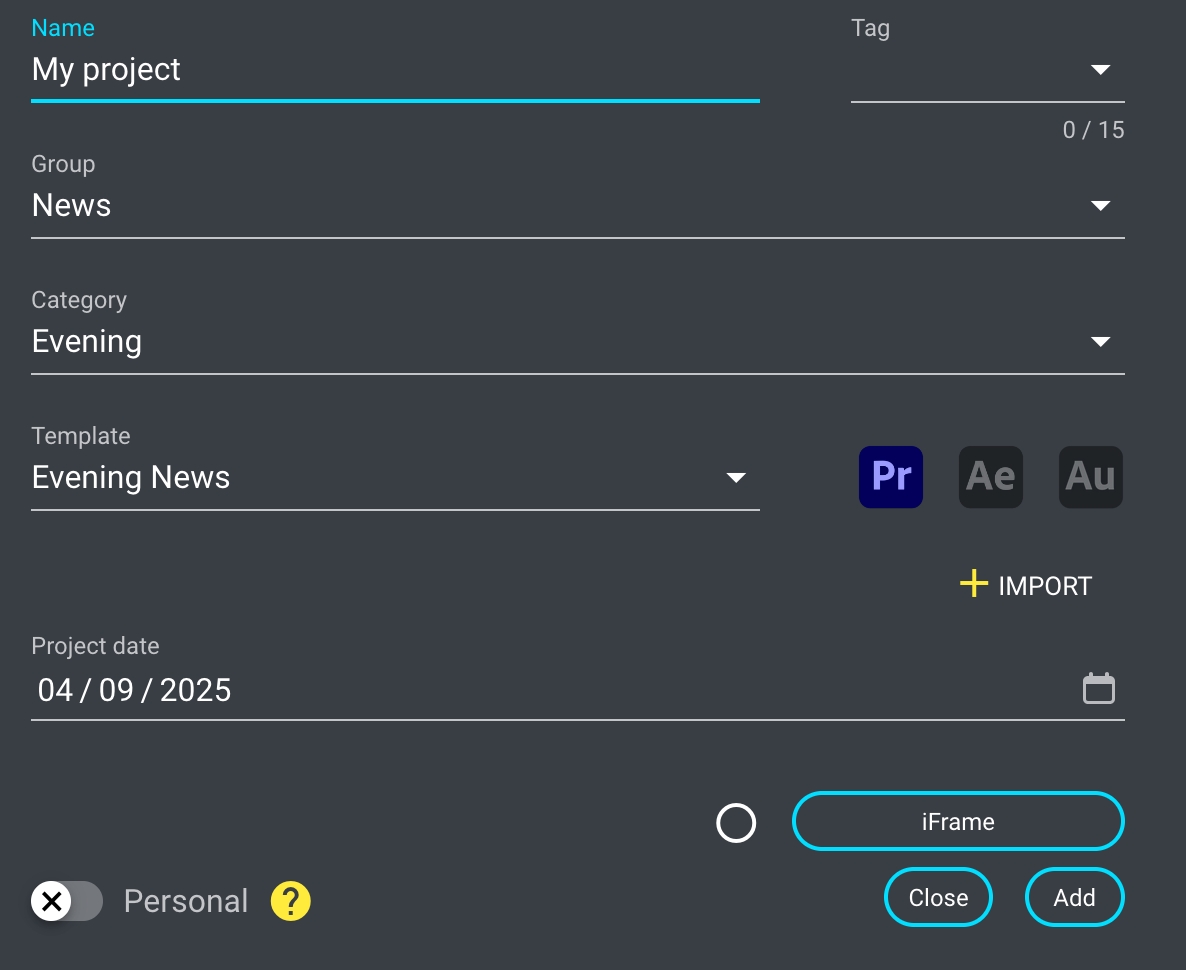

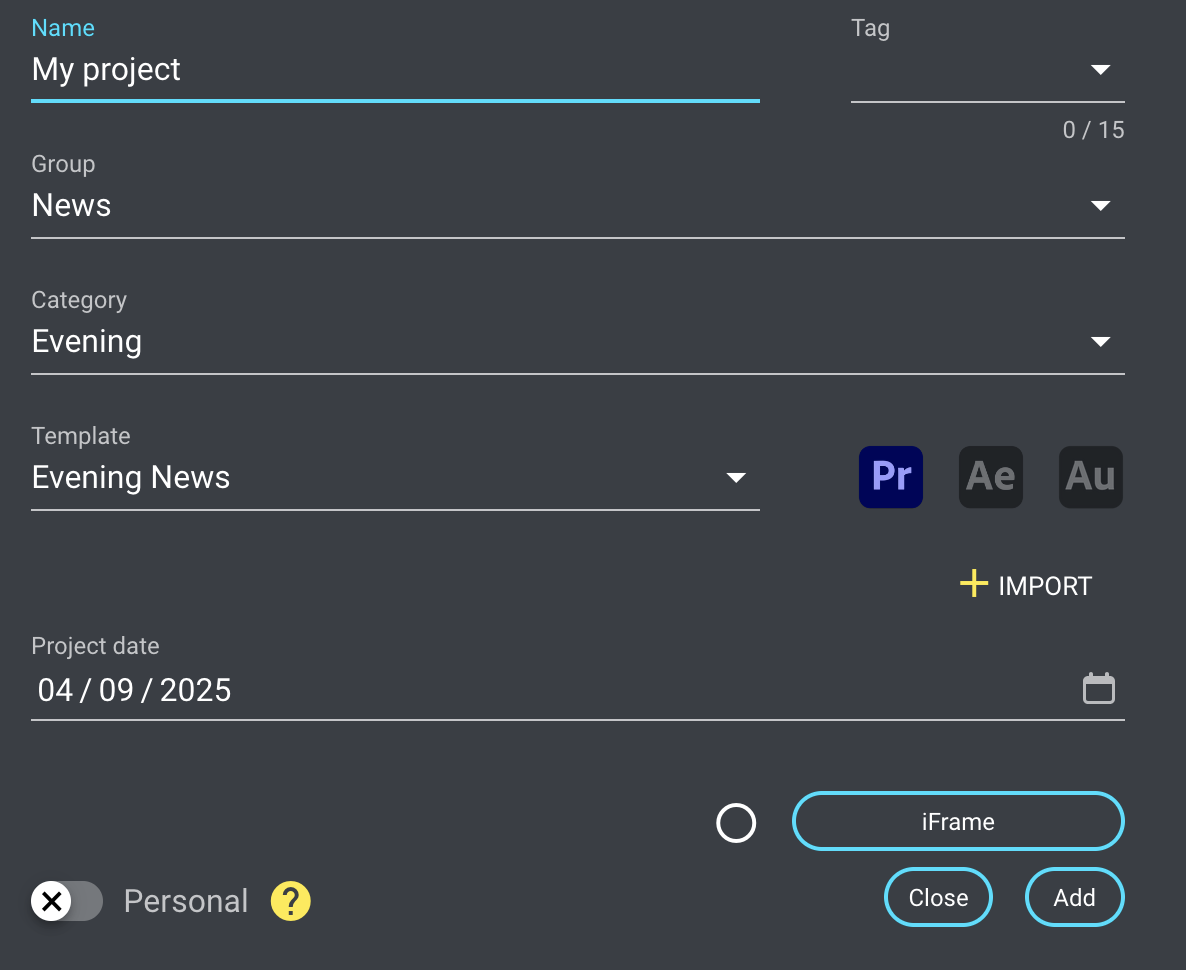

iFrame metadata in create project dialog

Step 4: Use the iFrame Modal

  1. Click the metadata button. This opens a modal with the embedded iFrame, displaying the third-party web page (e.g., with the dropdown).

  2. Choose an option and click Submit on the third-party app.

  3. The modal closes automatically, returning you to the Add Project dialog.

    • The metadata button will now indicate that a value is set.

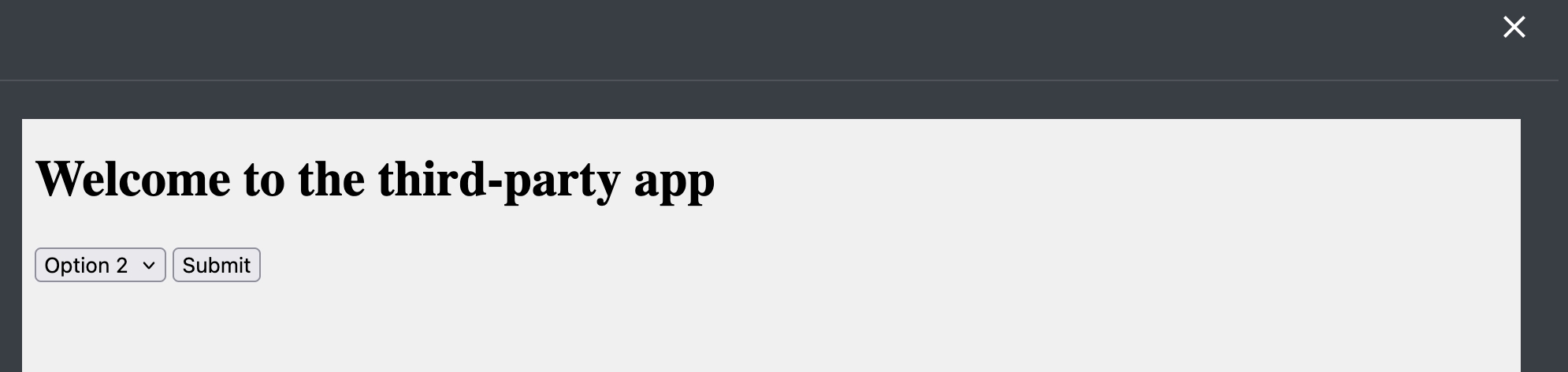

Choose an option

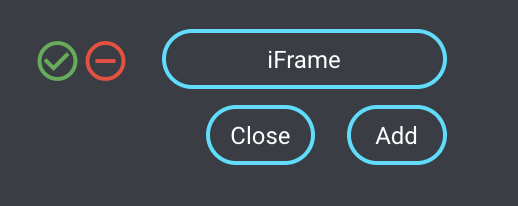

Step 5: Visualize and Reset the Value

  • ✅ Click the checkmark icon next to the metadata field to preview the current value.

  • ❌ Click the minus icon to remove the value and reset the field.

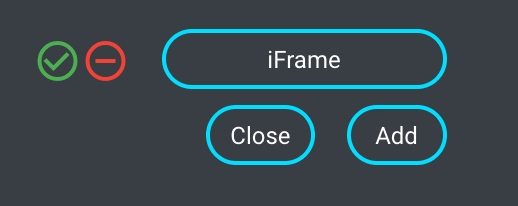

Verify or remove iFrame data

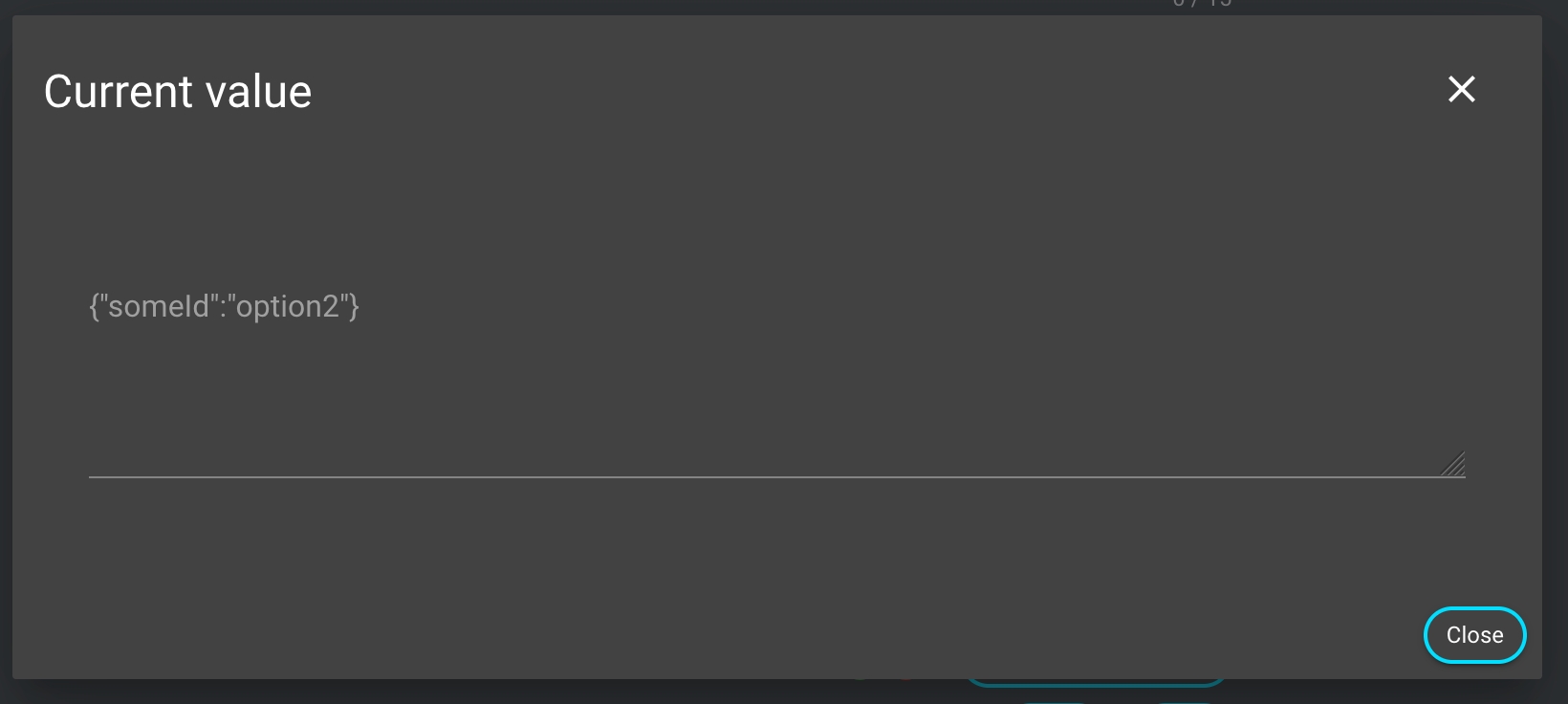

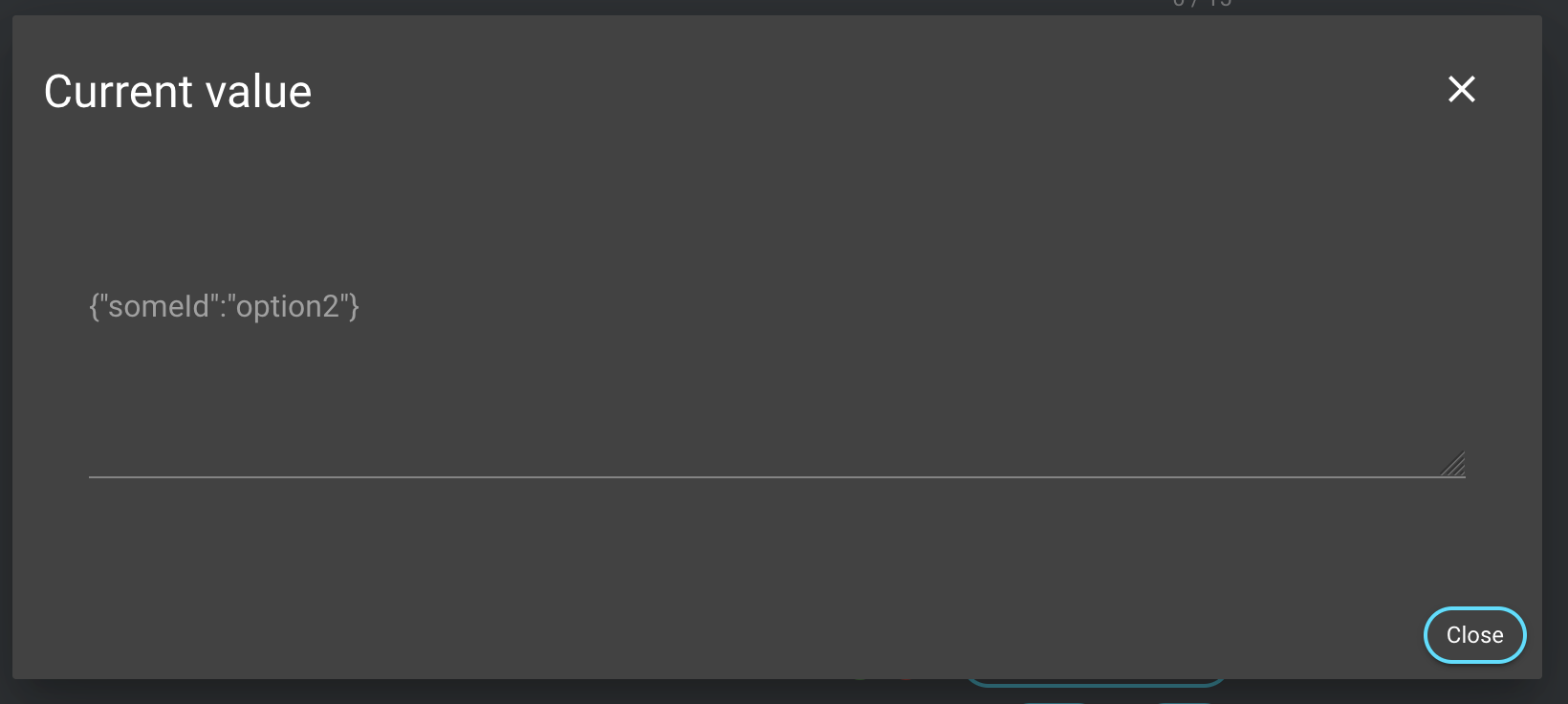

View metadata from iFrame vai verify button

Step 6: Add the Project

When you create the project:

  • The metadata key/value pair is passed into the create project stream.

  • The data can then be post-processed.

  • In this example, the selected value is simply assigned to the project object without further modification.

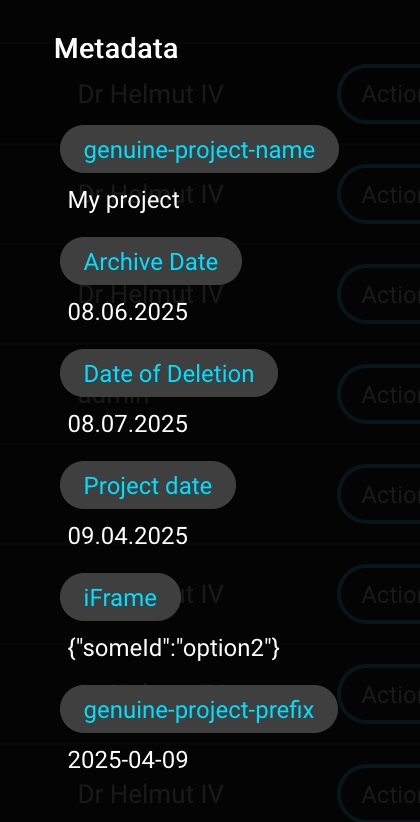

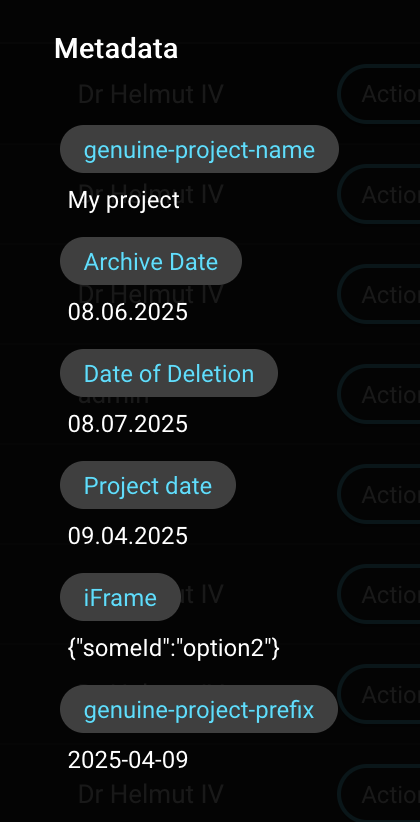

Project metadata
