CO Event Triggers

Overview

In the following section, all Cosmo event triggers and their characteristics will be presented.

Generally, these event triggers are customized and can be configured via a profile as desired.

The purpose is to provide the option to connect a specific Cosmo activity to a particular event or button.

Trigger 'limitations'

Project trigger

When viewing projects in the project list view, only the CUSTOM_FX trigger will be shown. No other triggers/streams will be available.

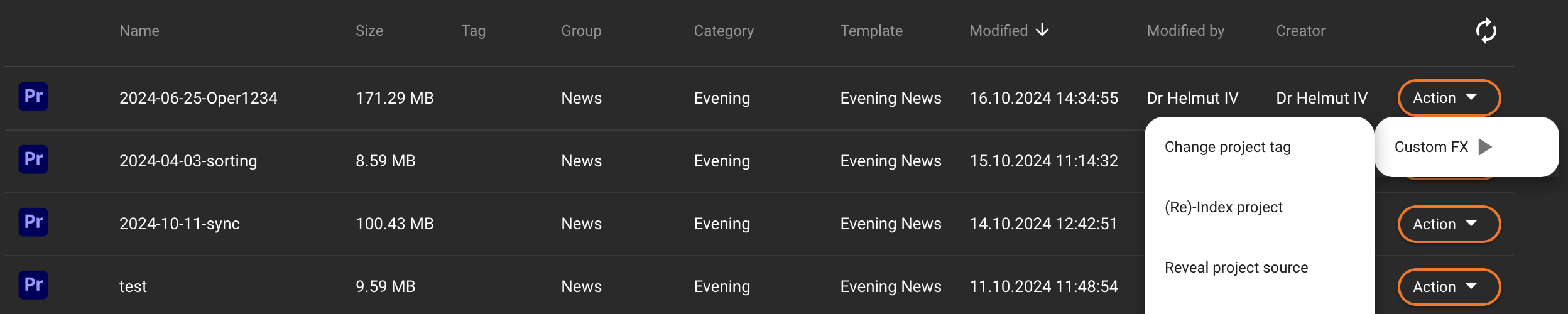

Custom FX trigger in CO

Asset / element trigger

When browsing the content of a project within Cosmo, additional triggers will be available.

Asset Ingest: Web Upload/Ingest

The two buttons at the top right can be used to upload or ingest assets.

For further information, navigate to the dedicated triggers: WEB_IMPORT or WEB_UPLOAD.

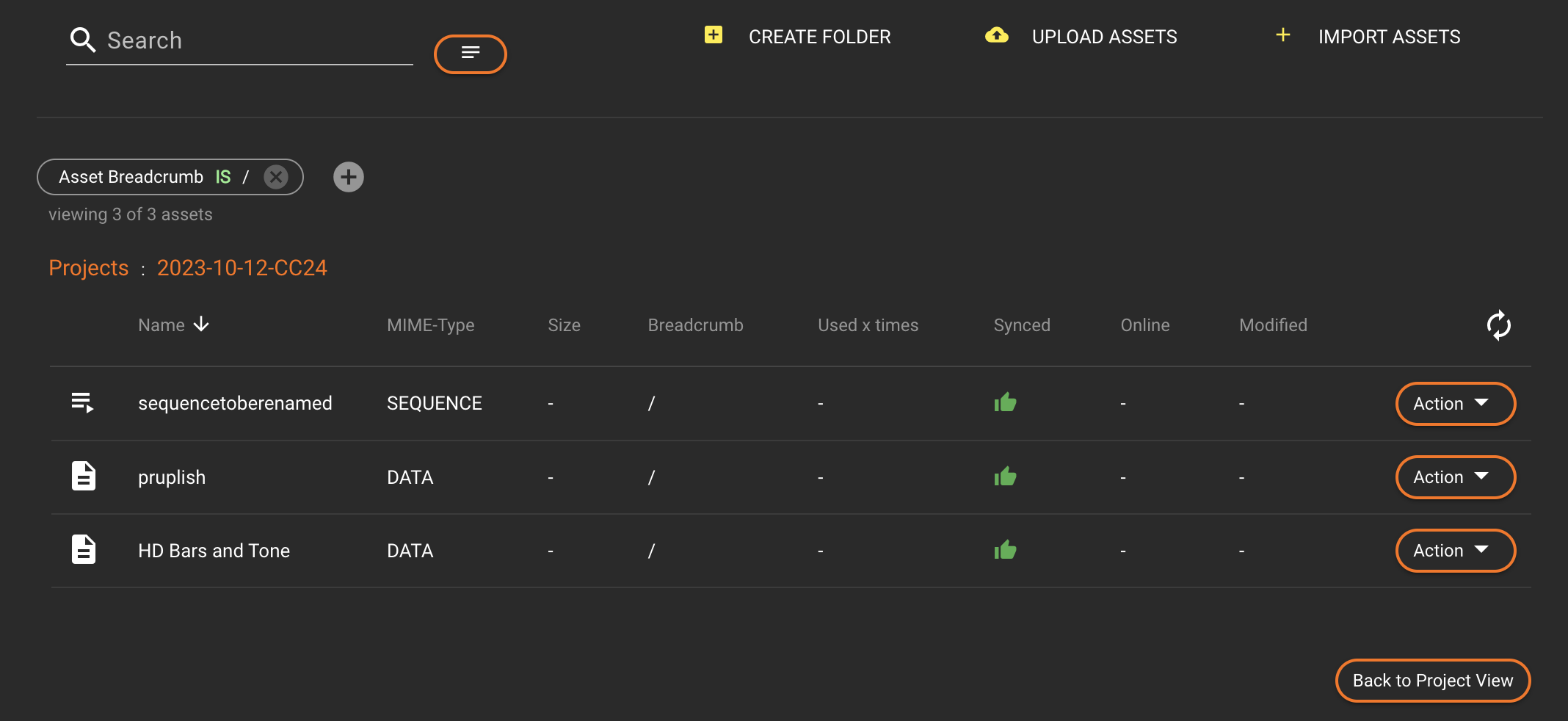

Project structure view within Cosmo

Export trigger: Web Export

It is possible to run the WEB_EXPORT trigger on certain elements within a project.

Elements that can be used in combination with the trigger are the following:

  • Sequences

  • Compositions

  • Audio, image or video asset

Additionally, when bouncing a session from Pro Tools, the WEB_EXPORT profile will be used to pass information to the Pro Tools Bounce Session Action node.

Set synced / unsynced trigger

Assets and sequences/compositions can be set to ether synced or unsynced.

This toggles the state of the element within the actual project file. If an unsynced asset is set to synced, a panel synchronization will be triggered as soon as the project panel is available (while using the project or on the next project launch).

This function can be used if an asset needs to be replaced/updated manually in the background.

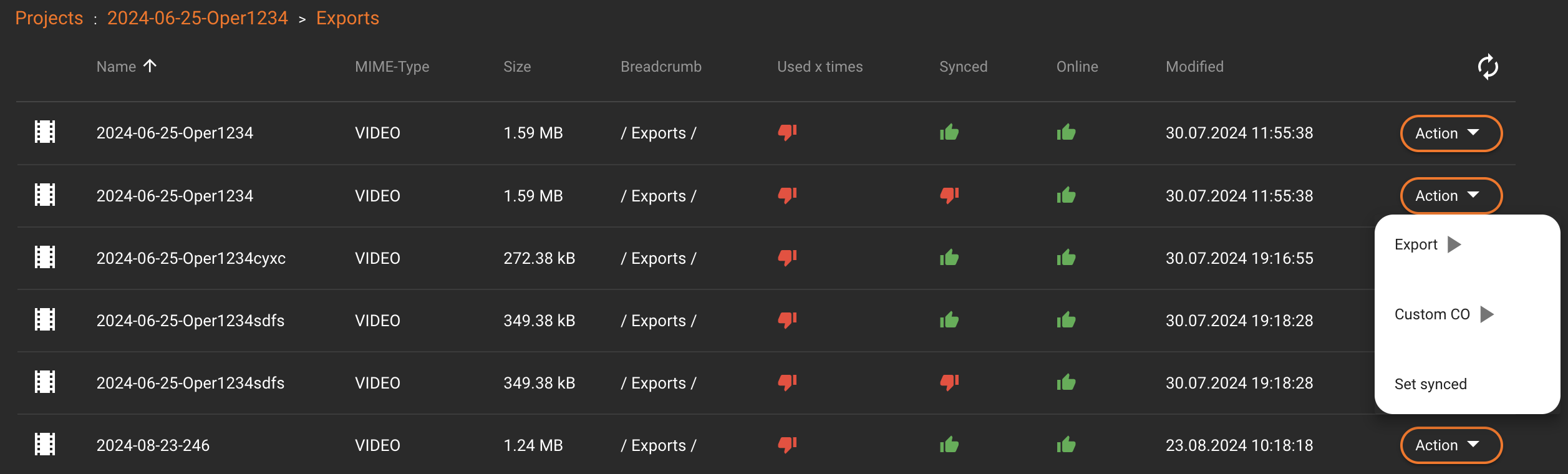

Asset / element trigger in Cosmo

Also refer to Cosmo-Project View Synced for additional information.

Custom CO

This trigger functions similarly to Custom FX and Custom IO. It allows the execution of a stream on an element, such as an asset or a sequence. his trigger can be executed from the Assets tab as well as from the Helmut4 Panel.

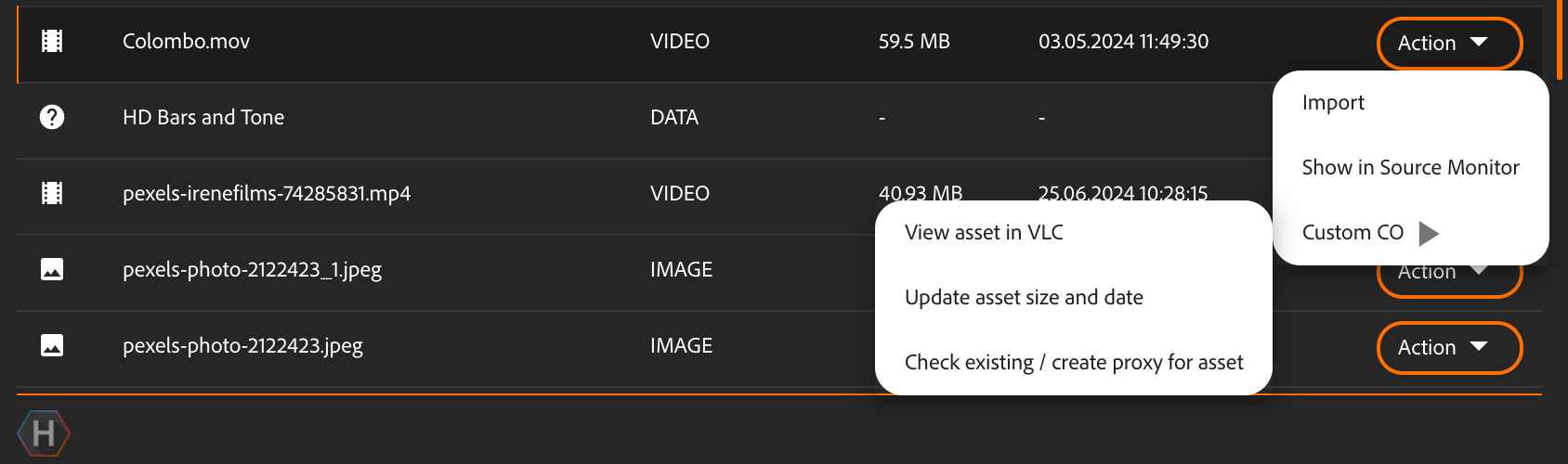

Custom CO streams within Helmut4 Panel

When creating a dedicated stream, please be aware of the limitations that apply to this trigger.

For more details, refer to Custom CO.

Available trigger

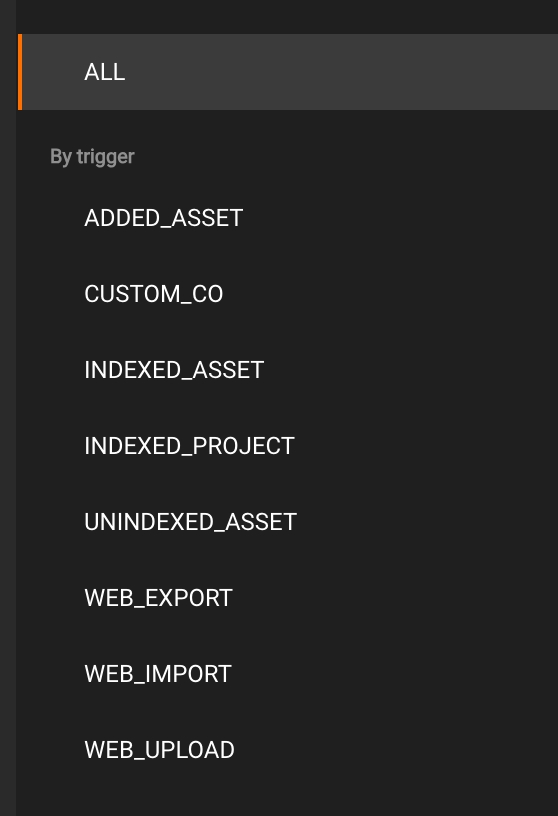

Cosmo stream trigger
